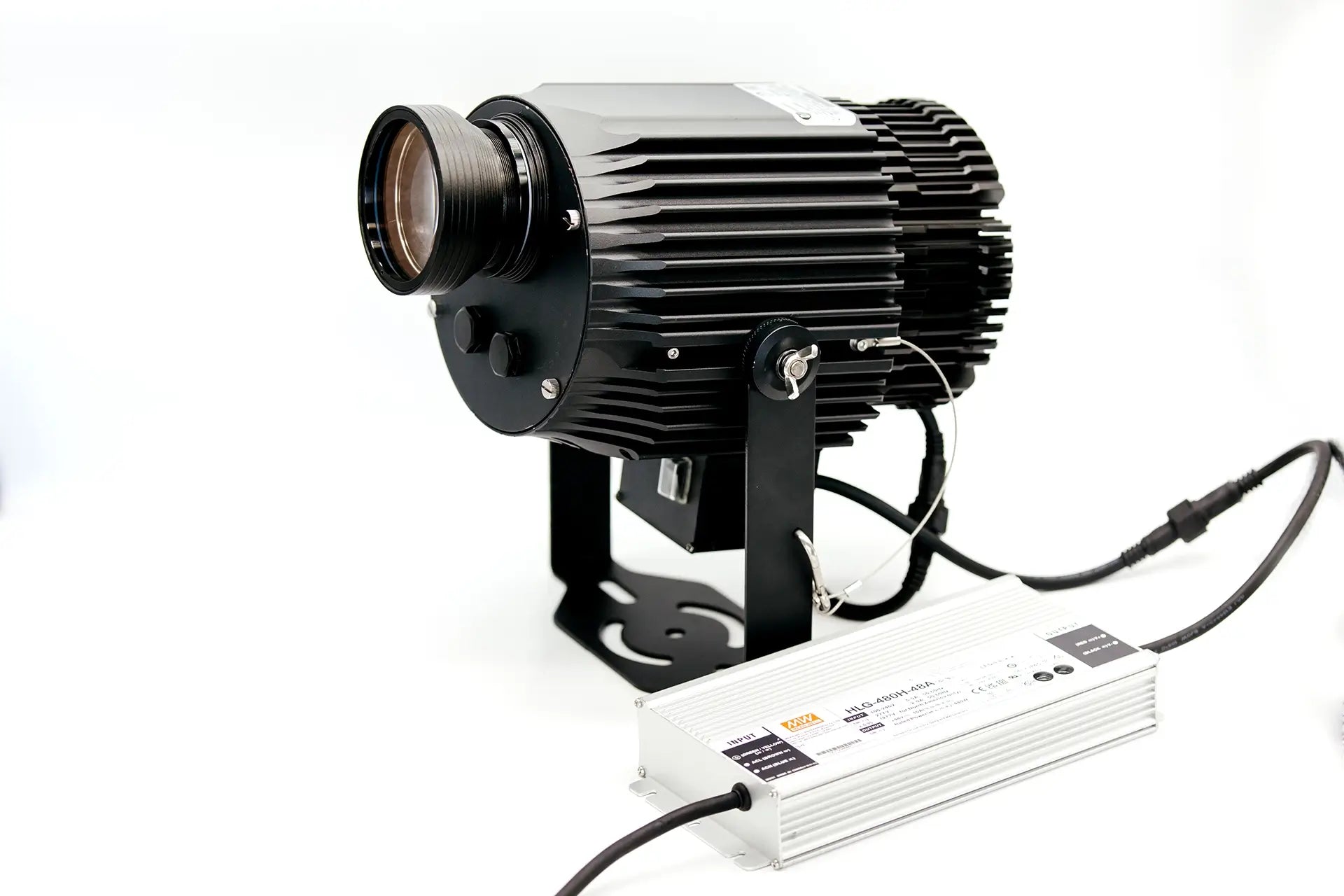

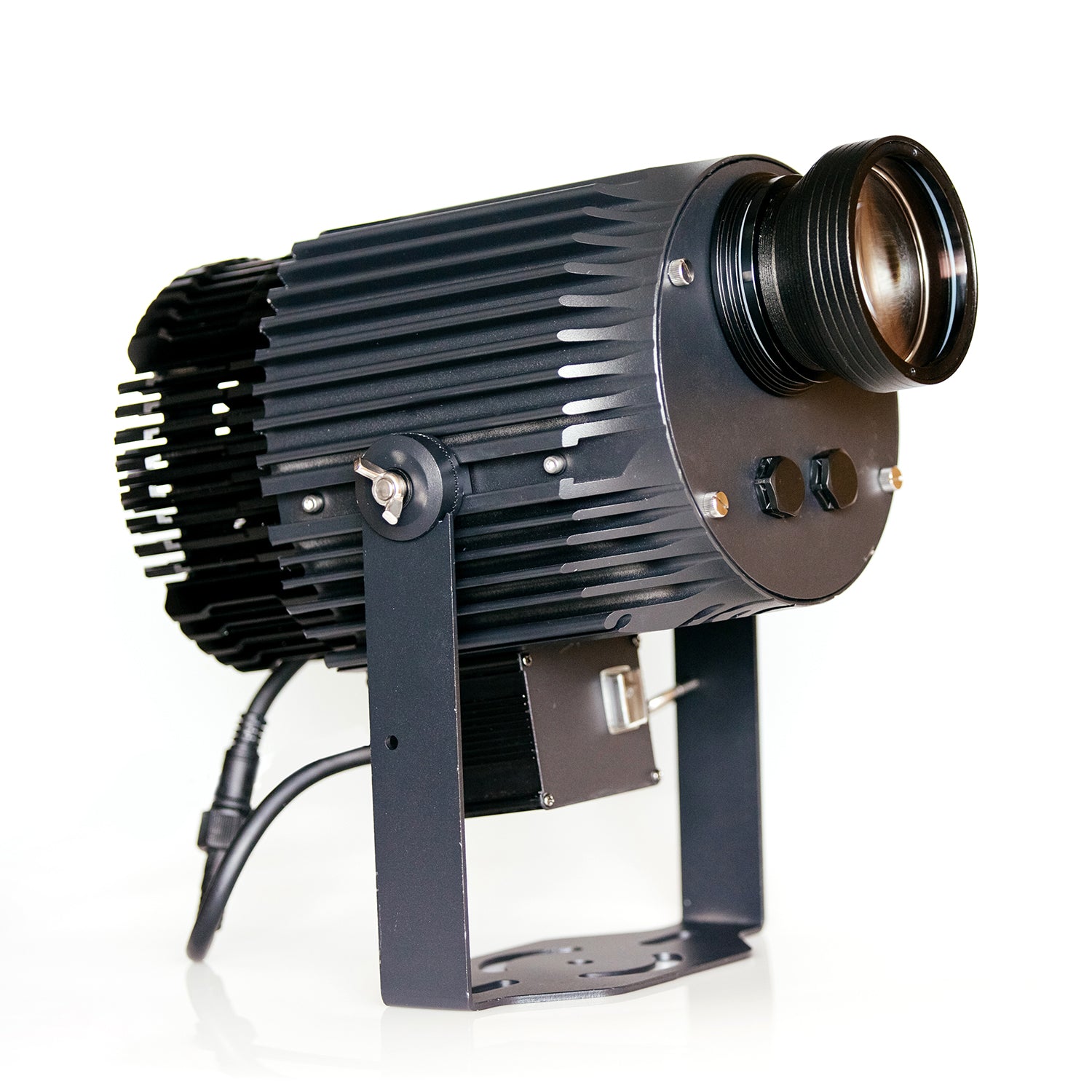

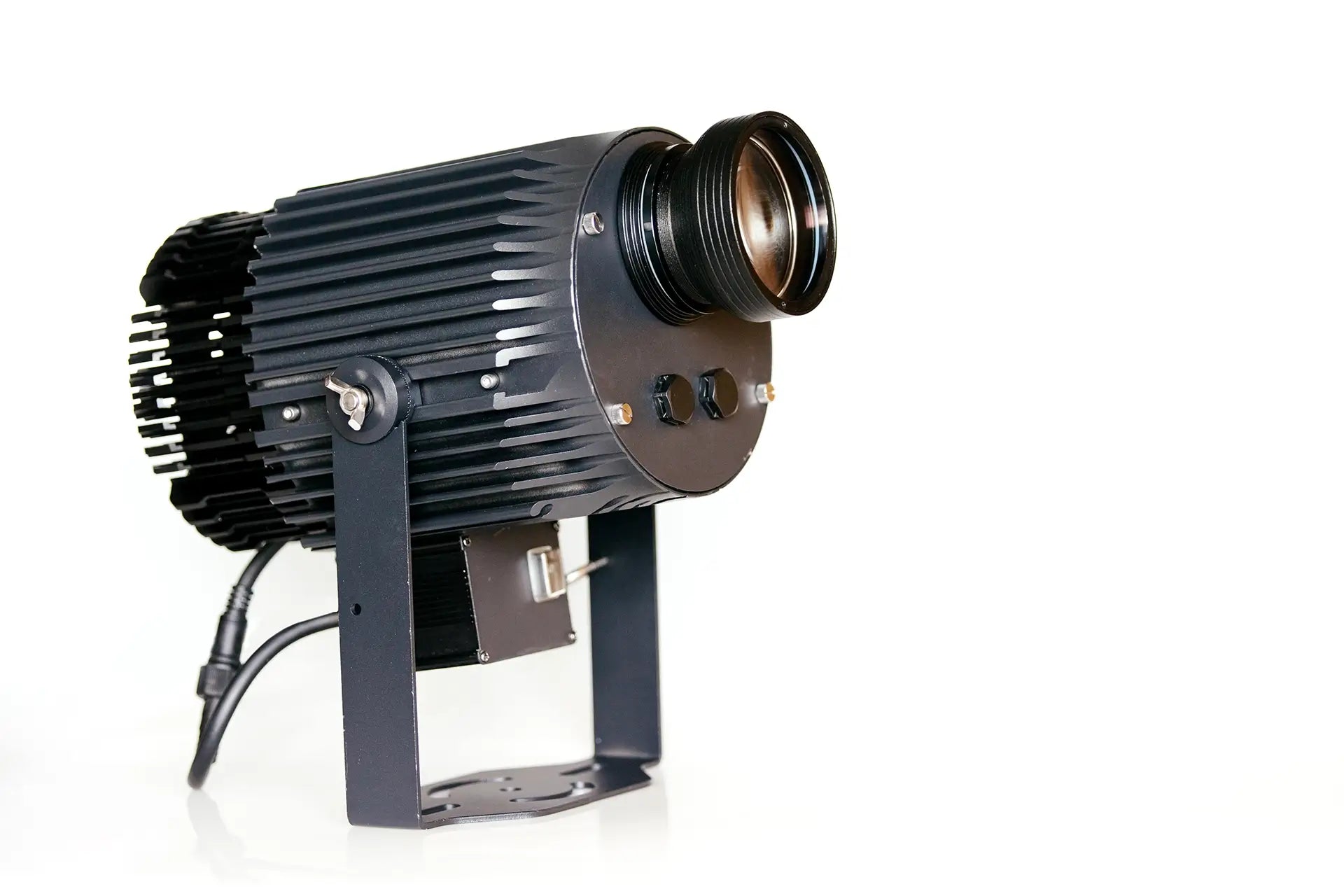

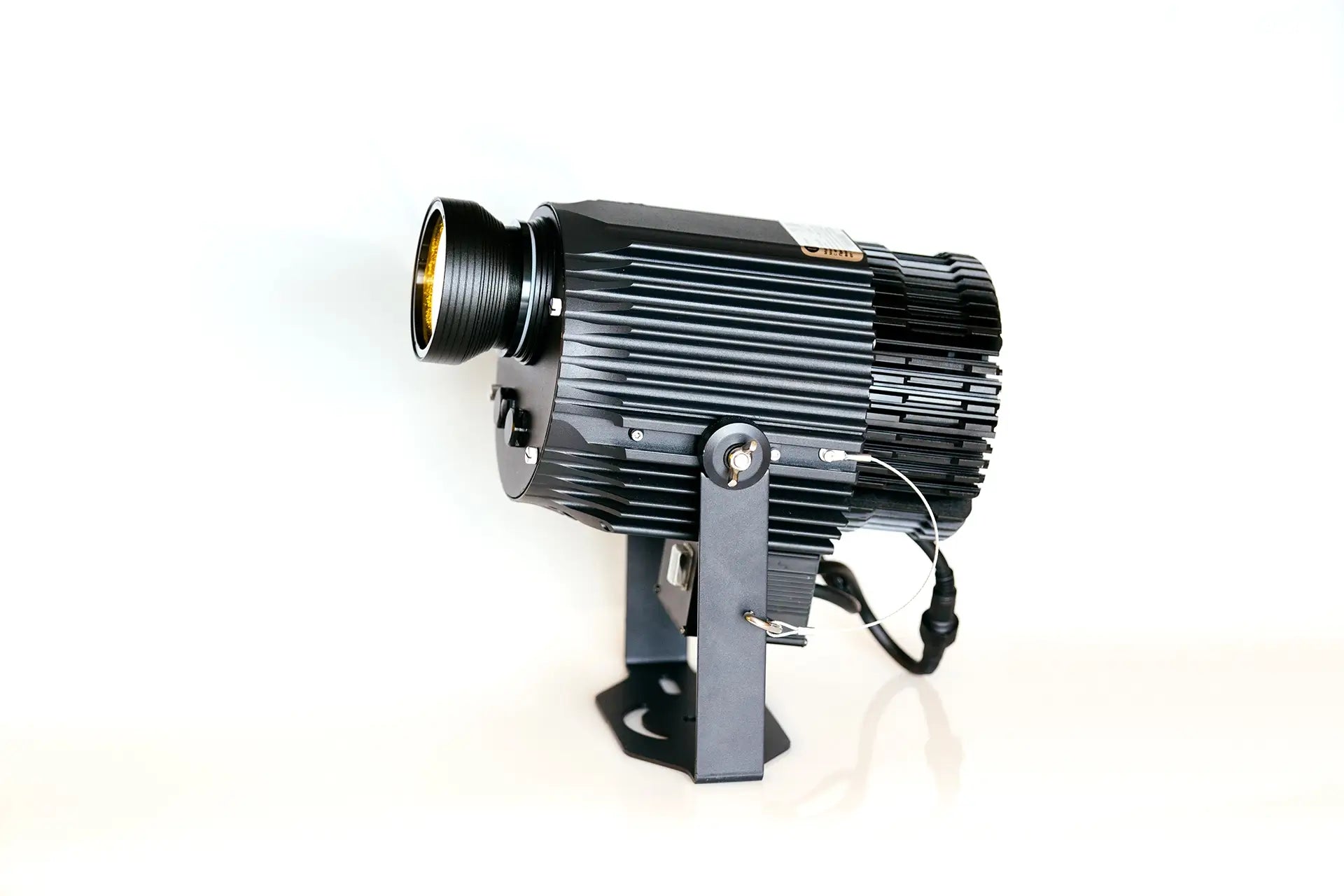

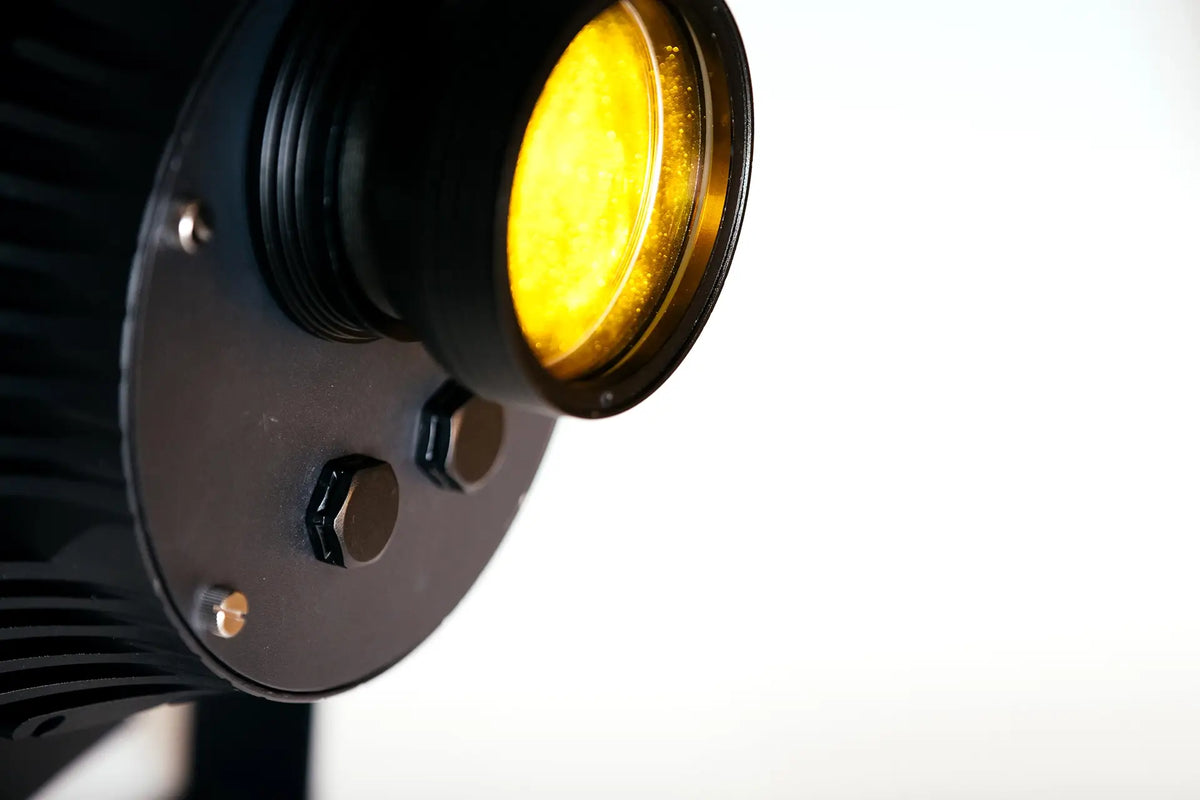

A gobo light projector — also called a gobo or logo projector — casts your logo or artwork as a crisp, oversized image on a wall, floor, or building facade. At 400W, the GBP-40004 is the flagship in the range, built for the long throws and large surfaces where a smaller gobo light would wash out. The OSRAM LED holds a sharp image from 10 meters out to 250 meters, so one unit can cover a facade-scale projection, a pedestrian crosswalk marking, or an industrial demarcation zone.
Aluminum-alloy IP65 housing for outdoor and architectural projection in dust and rain

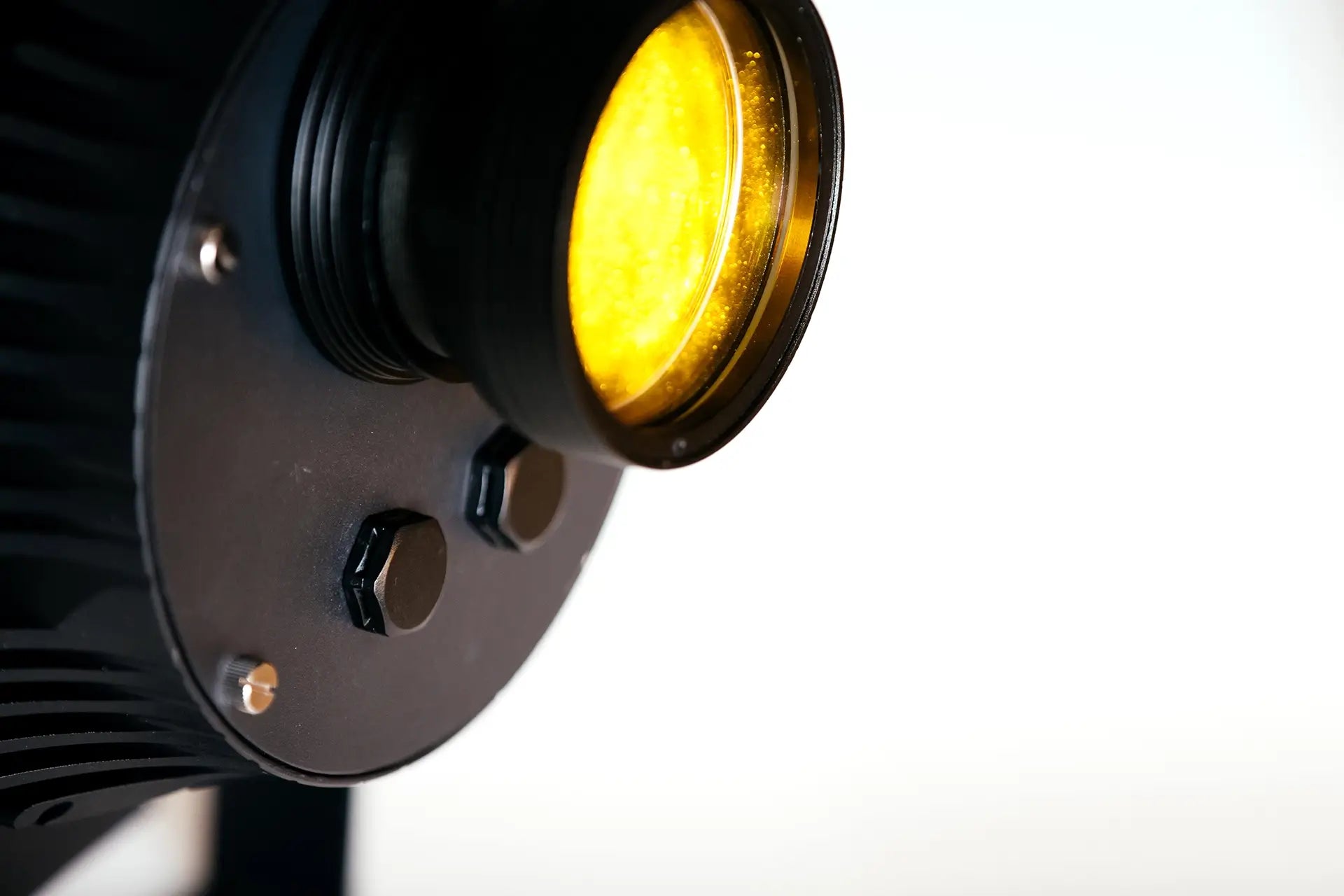

Standard (15 degrees), wide (30 degrees), and ultra-wide (50 degrees) optics to match throw distance and image size
Image rotation, dimming, and strobe for branding and live events

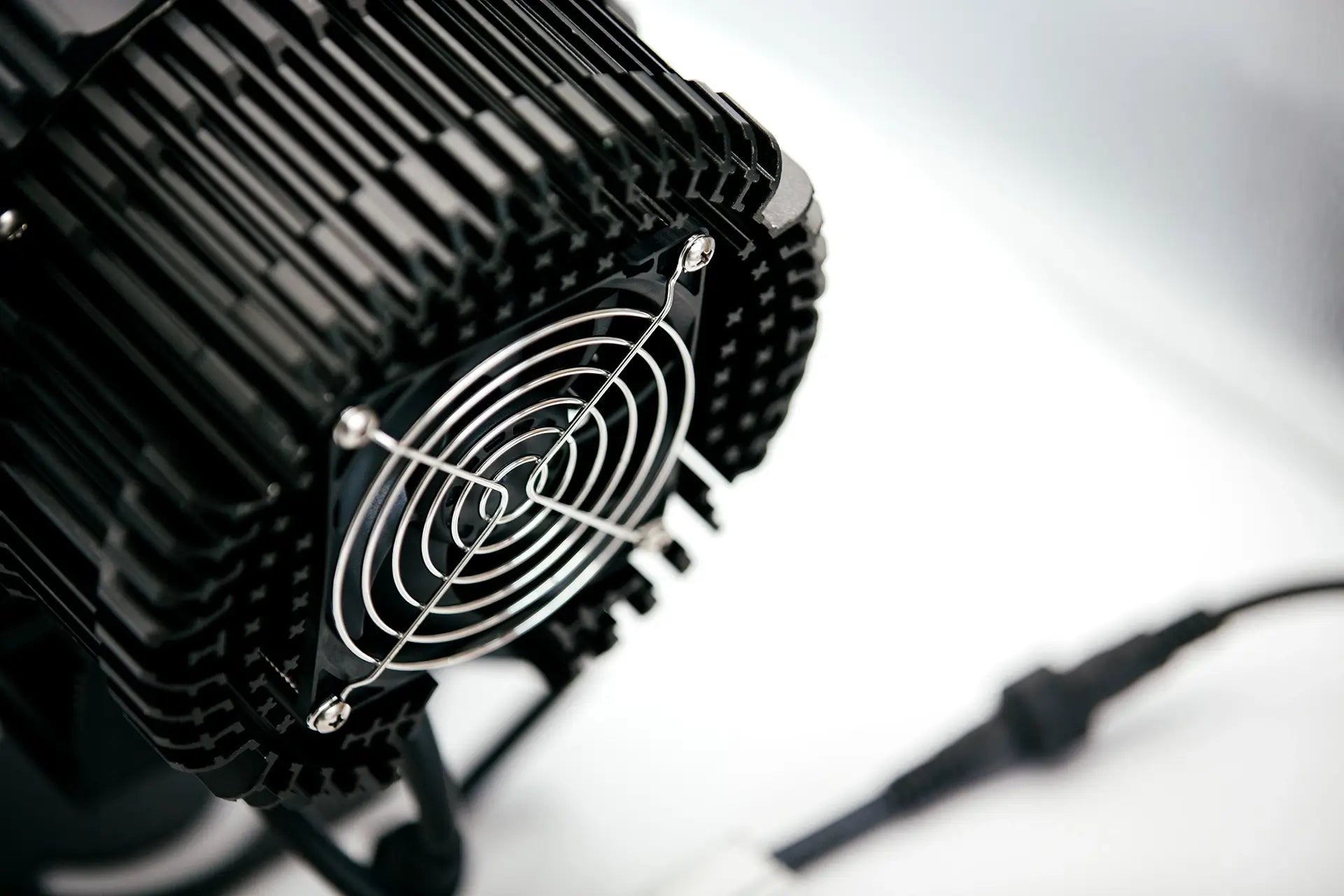

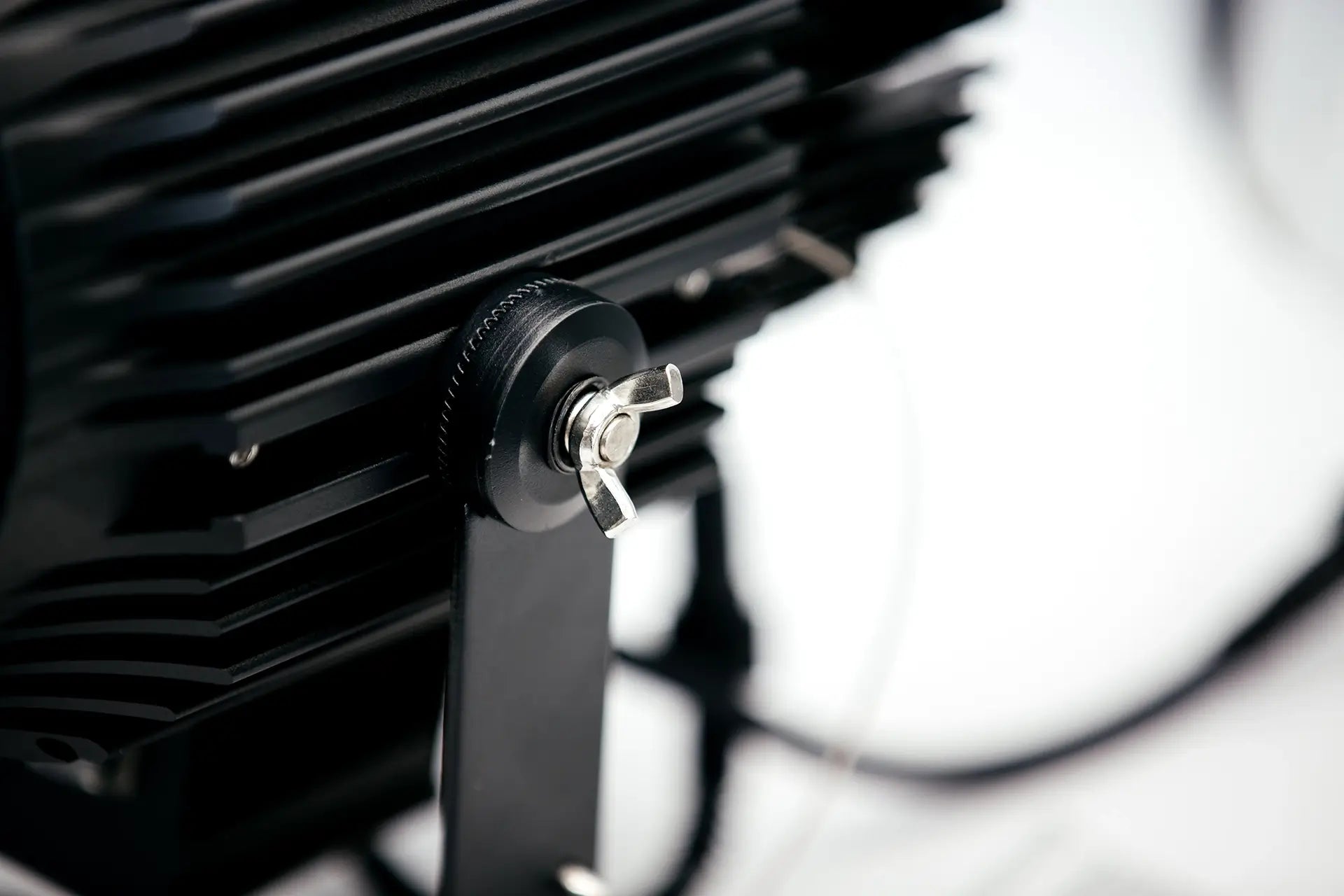

Active cooling with vibration-resistant mounting for continuous, stable operation
48 mm single-slide carousel with custom logo design included in the slide price
This projector needs a gobo slide to operate. Tell us your logo and the projection distance, and we'll match the right slide and optics so the image lands sharp at your site.
Specifications
Material
Aluminum alloy
Dimensions (L × W × H)
340 × 190 × 300 mm
Weight
9.8 kg
Power
400 W
Voltage
85-265V
Warranty
2 Years
Slide capacity
1 slide
Gobo slide diameter
48 mm
Projection distance
10-250 m
Light source
OSRAM LED
Protection rating
IP65
Cooling
Active
Image rotation
Yes
Dimming
Yes
Strobe
Yes
Frequently asked questions
Which optic should I order for my throw distance?
Match the lens to the distance and the image size you want: standard 15 degrees for long throws out toward 250 m, wide 30 degrees for mid-range, ultra-wide 50 degrees for short throws where the image has to spread fast. Sharp focus holds from 10 m out.
What do I need to specify when ordering?
Colour count and optics angle are both chosen at order: one, two, three, four or full colour, paired with 15, 30 or 50 degree optics. Supply voltage is flexible at 85-265V, so no mains variant is needed.
Does the projector come ready to run, or do I need a slide?
A 48 mm gobo slide is required for it to project anything, and the carousel holds one at a time. Custom logo design is included in the slide price, so send the artwork and distance and the slide is cut to suit.
