4-Vessel Craft Brewhouse System — 500L Stainless Steel

Name: 4-Vessel Craft Brewhouse System — 500L Stainless Steel
Brand: BarEquip.Pro
SKU: BEP-0546
Price: 36250.0 USD
Availability: BackOrder

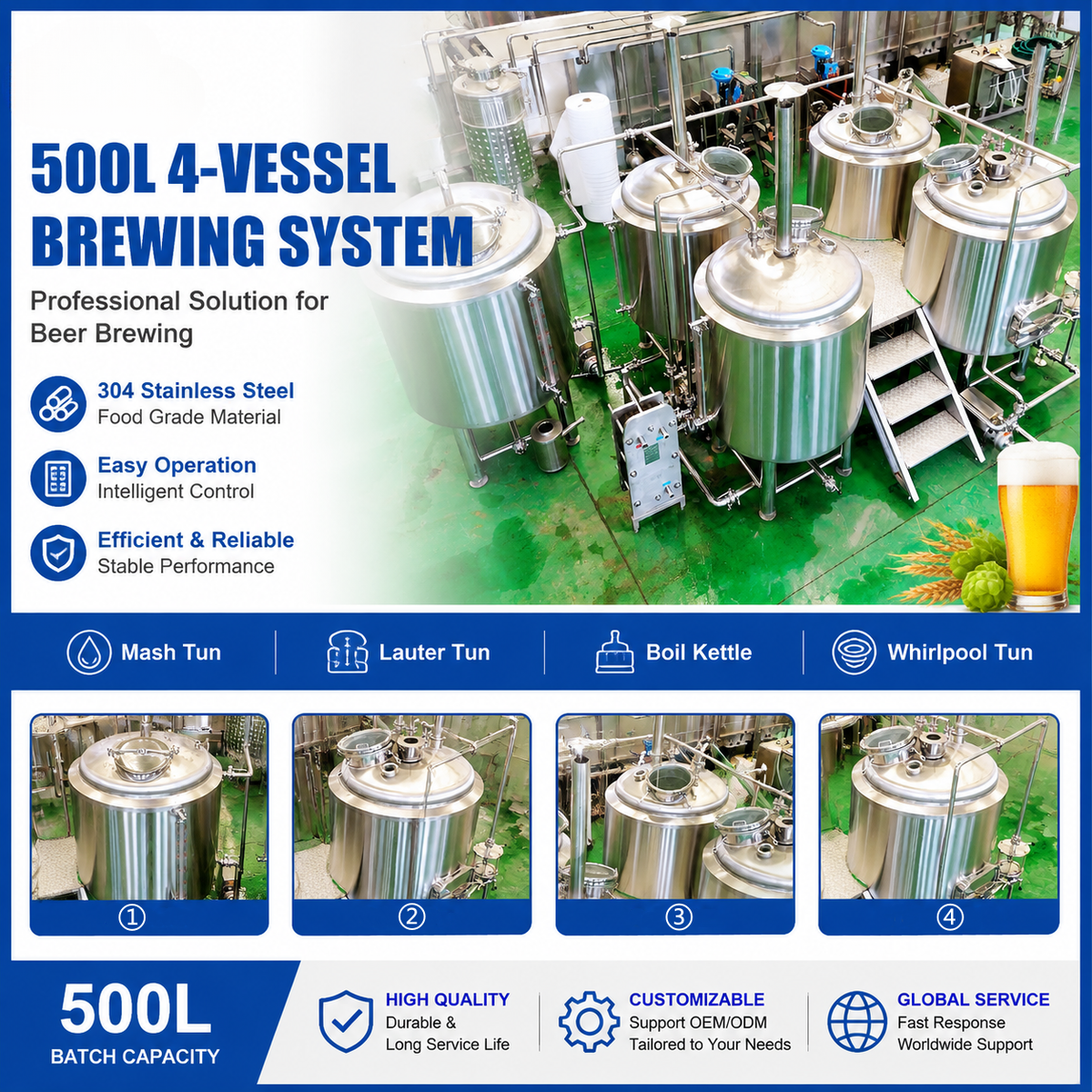

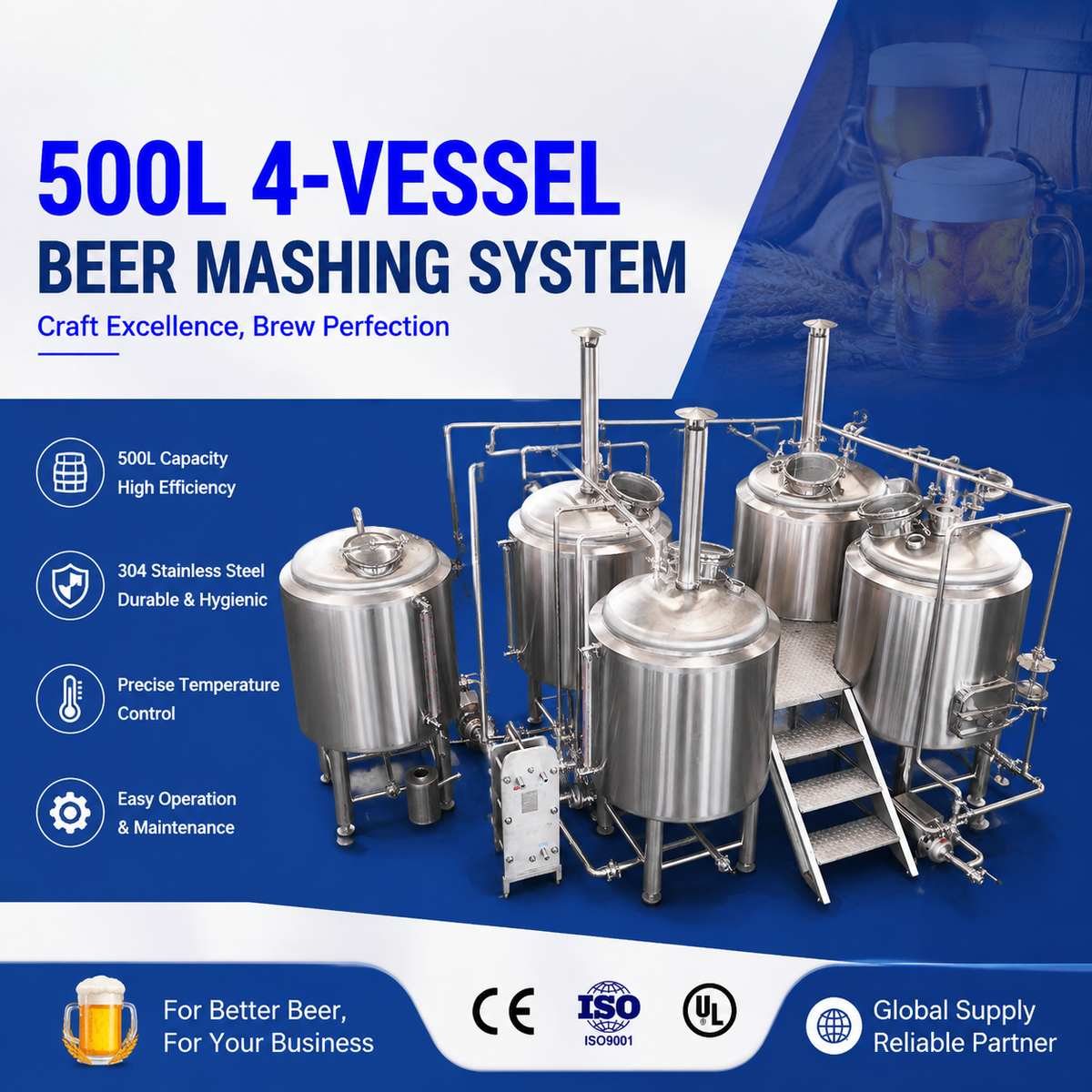

A turnkey 500L four-vessel brewhouse — mash tun, lauter tun, boil kettle, and whirlpool — for craft breweries running multiple brews a day.

From$ 36 250 $ 41 688 13% discount

Custom order

Made to order to your spec — you choose the size and configuration.

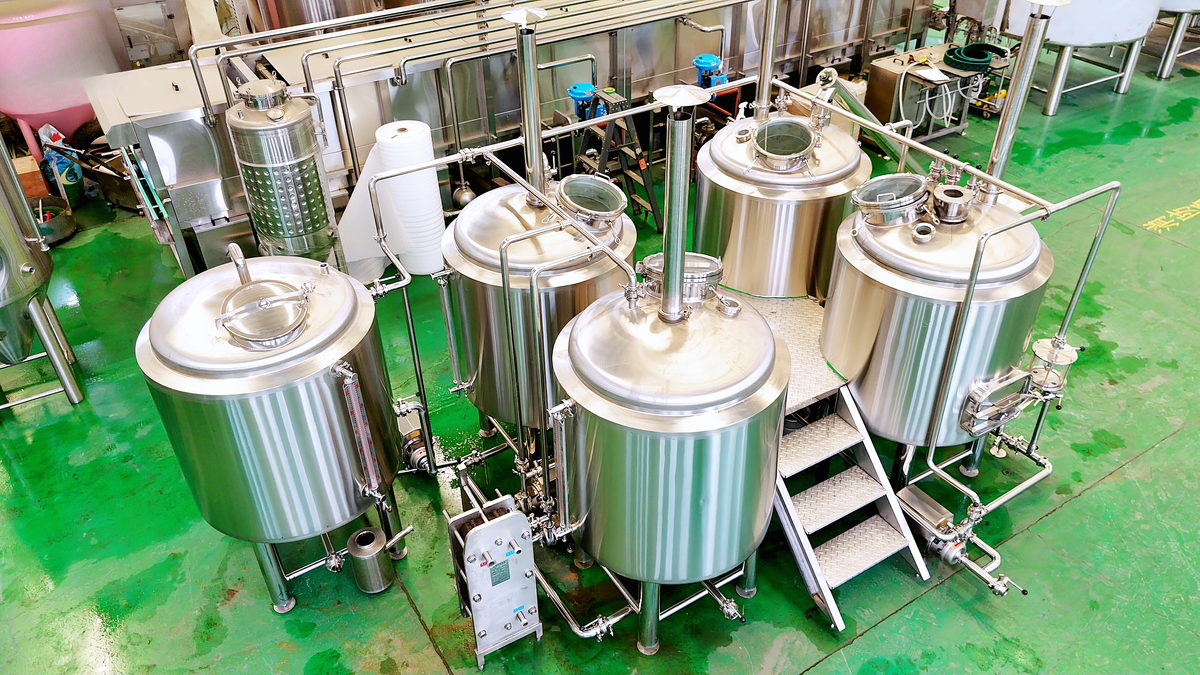

A four-vessel brewhouse splits the brewing cycle across independent vessels — mash tun, lauter tun, boil kettle, and whirlpool — so a brewery can mash one batch while another lauters or boils. That parallelism is the point: it lifts daily throughput to multiple brews per day rather than the single sequential batch a combined two-vessel system allows. This 500L-per-batch system suits microbreweries, brewpubs, and hotel or taproom production that need consistent output without over-committing floor space.

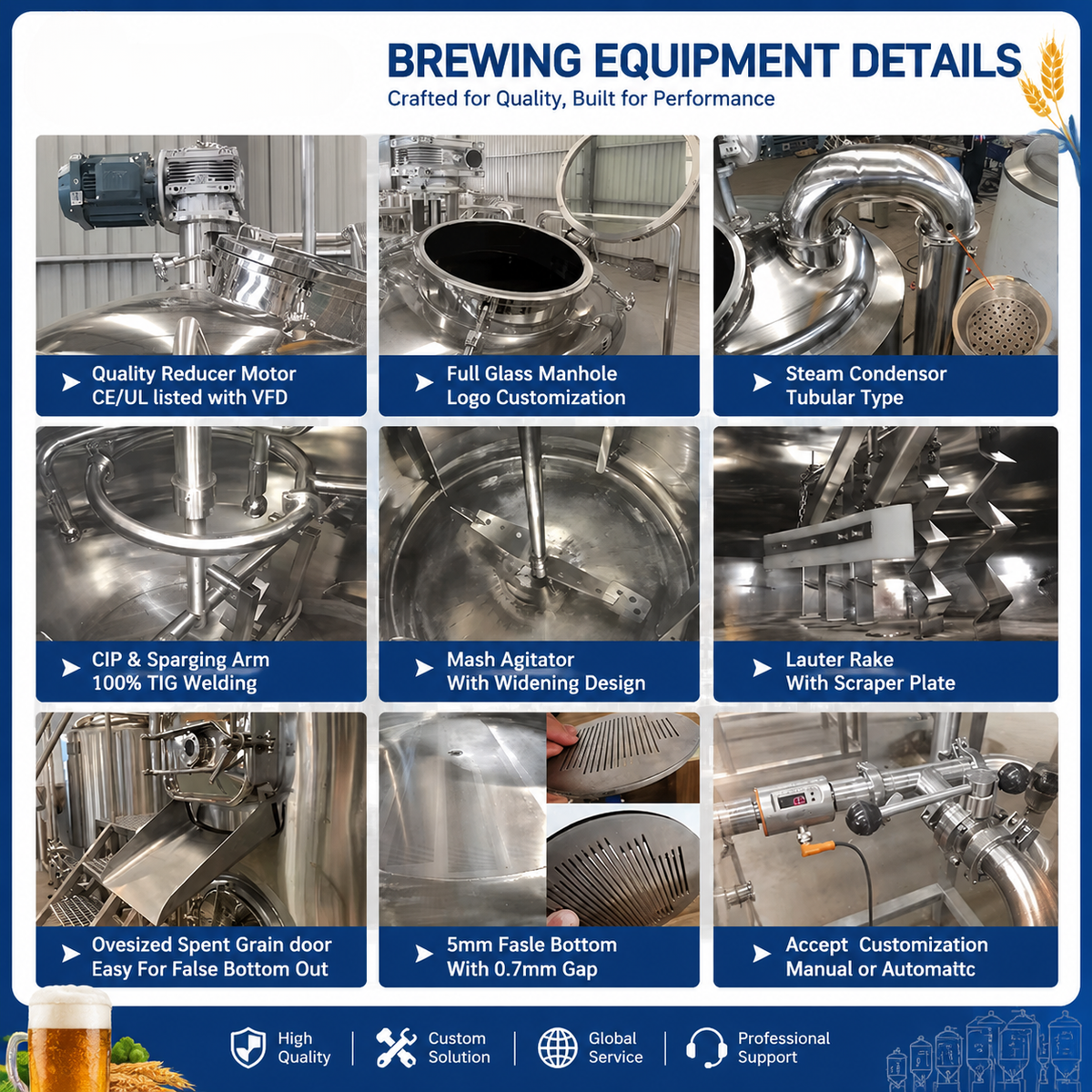

Vessels are built from food-grade SUS304 (SUS316 or red-copper cladding optional), with the interior mirror-polished to Ra ≤ 0.4μm for easy cleaning and clean fermentation. Full polyurethane insulation, 80–100mm thick, holds mash and boil temperatures with minimal energy draw. Heating is configurable to the venue's utilities:

Electric, steam, or direct-fire heating options
Siemens PLC with HMI touch panel, or PID semi-automatic control
Custom voltage from 110V to 480V to match local supply
60° or 75° bottom cone for clean trub and yeast collection

The brewhouse ships as part of a complete turnkey line — mill, fermenters, glycol chiller, CIP station, and control panel — and every capacity from 200L to 3000L is available. Overseas installation and commissioning is offered, and the main vessels carry a 5-year manufacturer warranty. Contact us to confirm the configuration for your utilities and target volume.

Specifications

Material: SUS304, SUS316, Red copper
Capacity: 500000 ml
Weight: 1000.0 kg
Voltage: 110V–480V (custom to local supply)
Warranty: 5 years on main vessels
Certifications: CE/ISO9001:2000/ROSH
Customization: Custom capacity (200L–3000L), voltage, heating method, material, and red-copper cladding; OEM/ODM supported
Configuration: 4-vessel (mash tun / lauter tun / boil kettle / whirlpool)
Batch capacity: 500 L
Available capacities: 200 / 300 / 500 / 2000 / 3000 L
Interior finish: Mirror polished, Ra ≤ 0.4 μm
Insulation: Polyurethane, 80–100 mm
Heating method: Electric / steam / direct fire
Cooling method: Water belt / miller board
Control system: Siemens PLC with HMI, or PID semi-automatic
Bottom cone: 60 or 75 °
Core components: Motor, gear, pump, bearing
Installation: Overseas installation & commissioning available

Frequently asked questions

What is the difference between a 4-vessel and a 2-vessel brewhouse?

A 4-vessel brewhouse gives each stage its own dedicated vessel — mash tun, lauter tun, boil kettle, and whirlpool — so you can run stages in parallel and produce multiple brews per day. A 2-vessel system combines functions and brews one batch at a time, which caps daily throughput.

How many brews per day can this 500L system produce?

Because the four vessels work independently, you can mash one batch while another lauters or boils, allowing several 500L brews in a single day. Actual output depends on your recipe, fermentation capacity, and cellar setup — contact us to plan your daily schedule.

Can the heating and voltage be matched to my facility?

Yes. Heating is available as electric, steam, or direct fire, and the system supports custom voltage from 110V to 480V to match your local supply. Specify your utilities when ordering and the configuration is built to suit.

What is included in the turnkey brewery package?

The complete line covers the malt mill, brewhouse, fermenters, glycol chiller, CIP station, and control panel. It can be supplied as a full turnkey system so a brewery is ready to run after installation.

Is installation support available overseas?

Yes. Overseas installation and commissioning is available, and engineers can service the equipment on site. Contact us to arrange installation for your location.

What warranty and certifications does the system carry?

The main vessels are backed by a 5-year manufacturer warranty, and the system is CE, ISO 9001, and ROHS certified. A machinery test report is provided with each unit.
