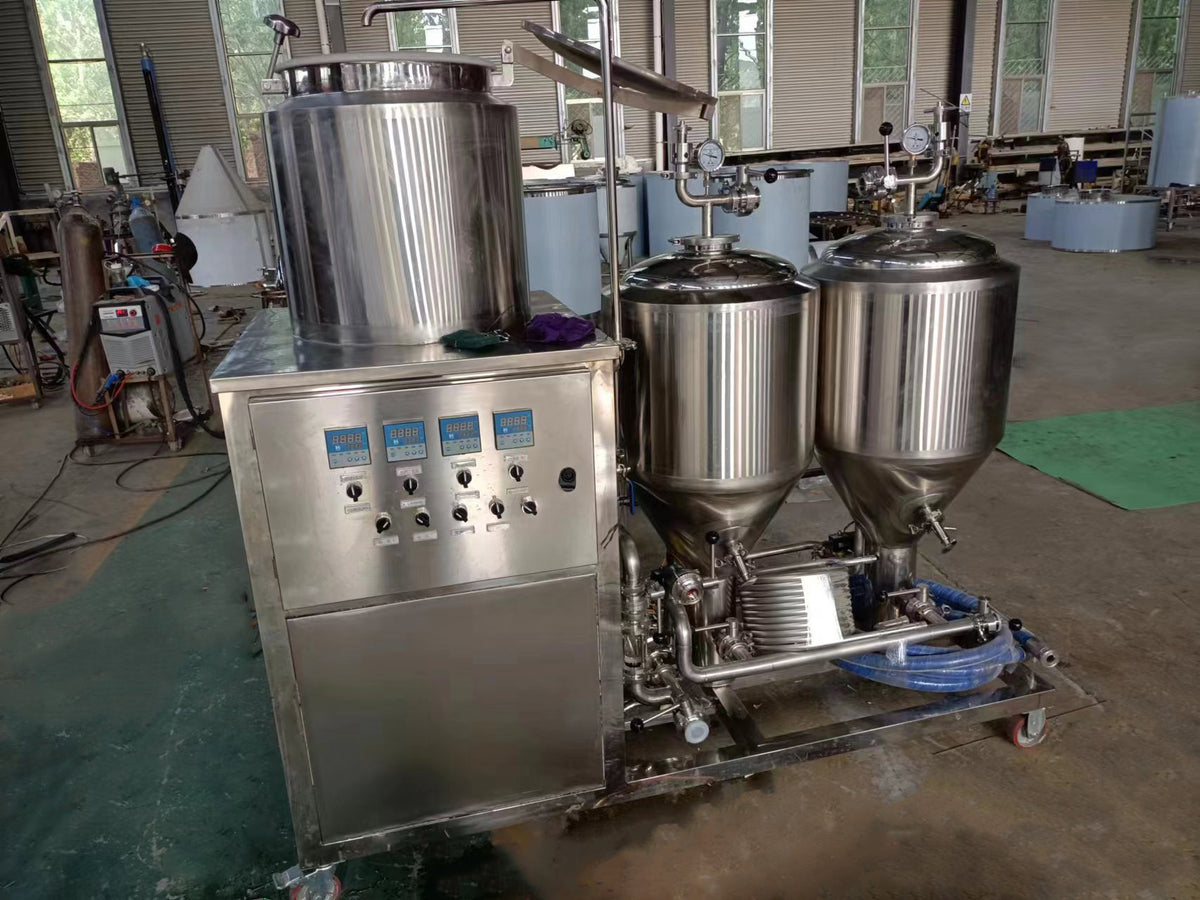

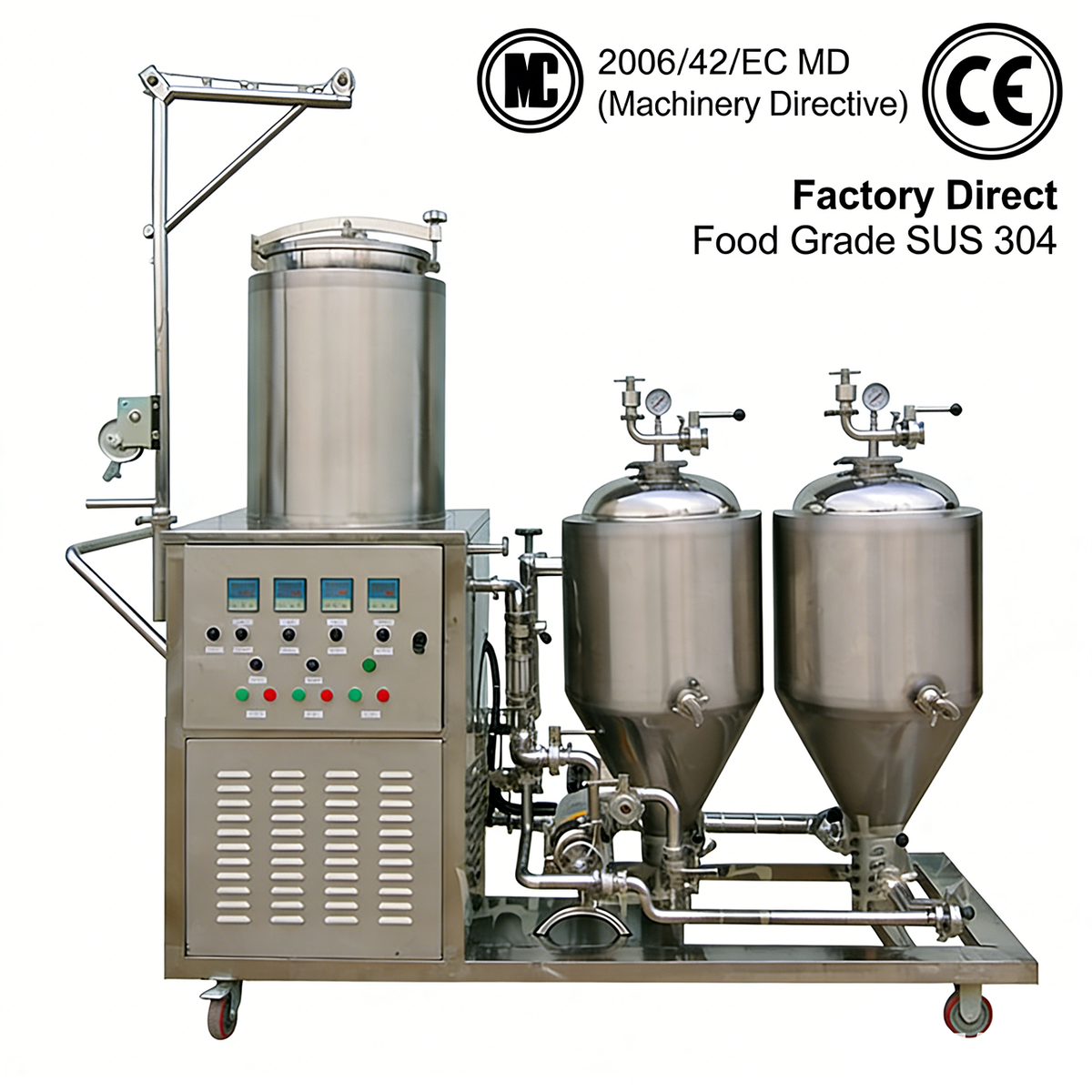

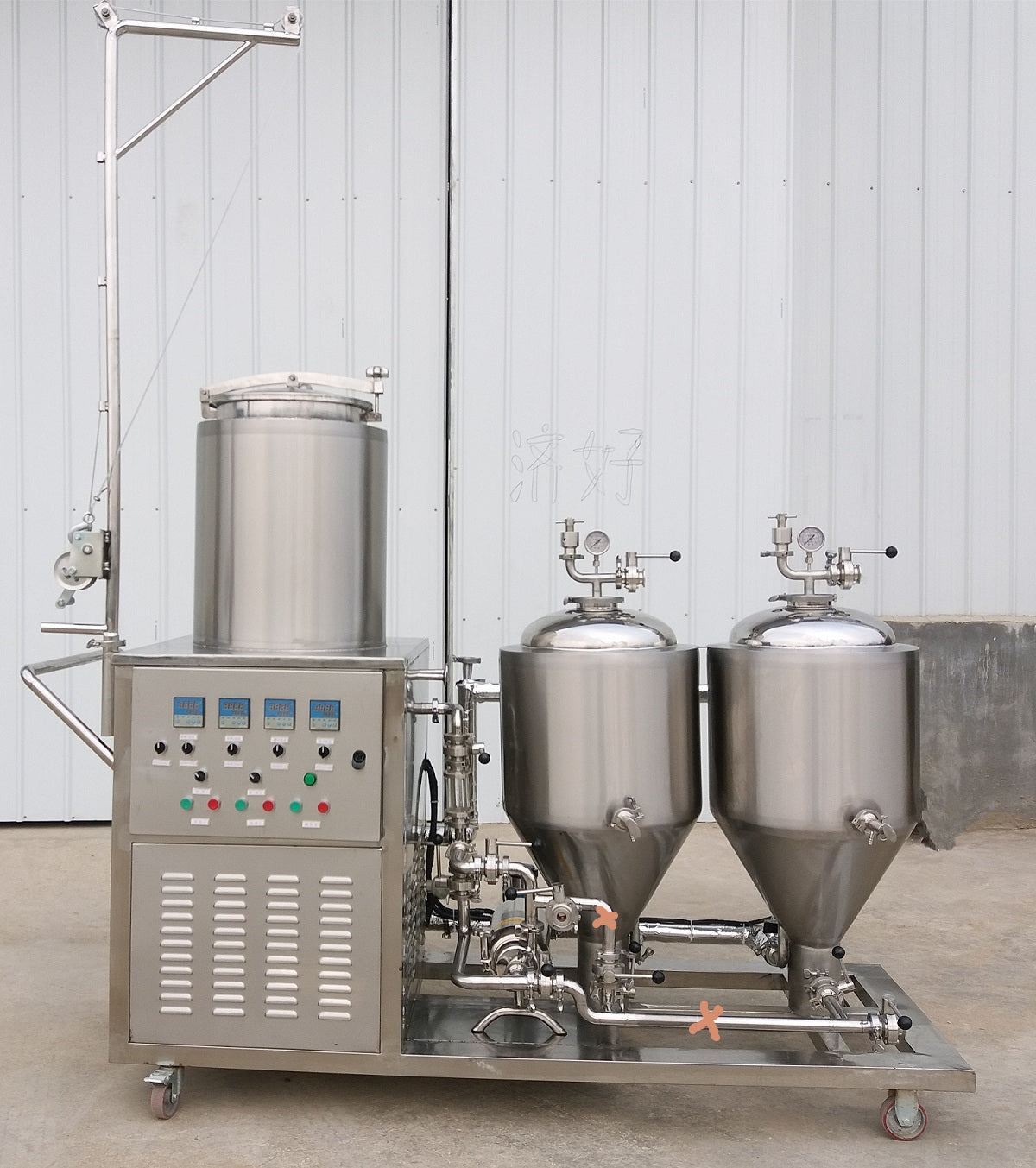

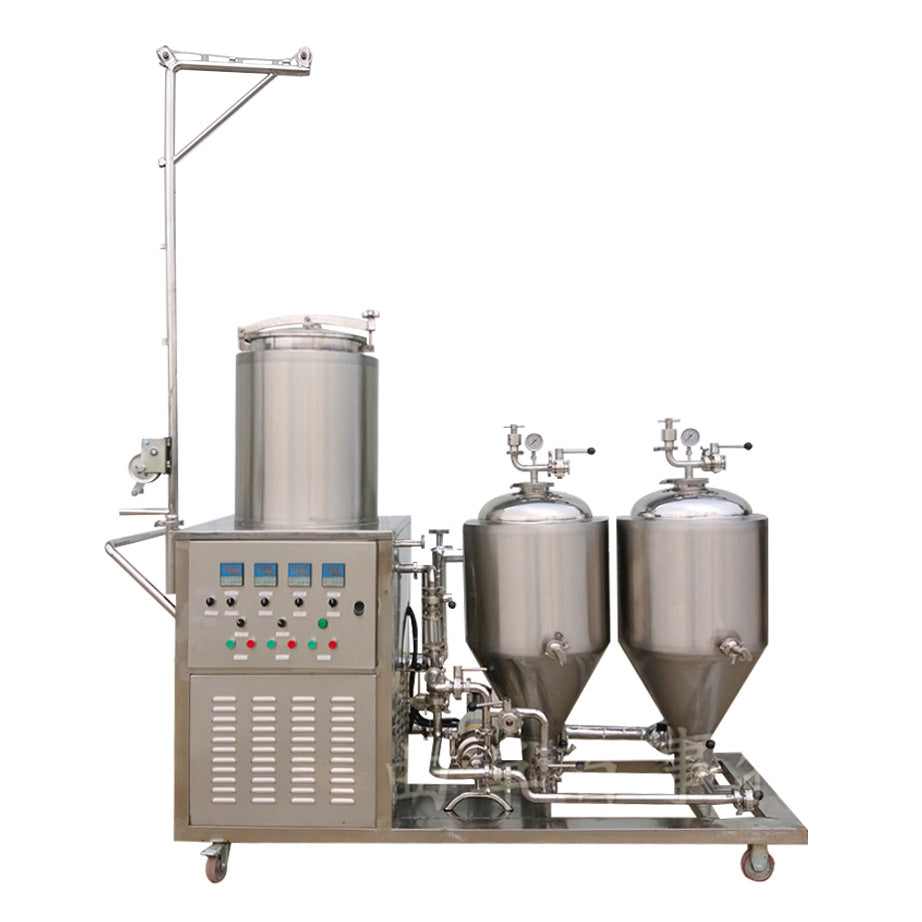

50L draft beer system with mash tun, control panel and two conical fermenters on casters, CE and MC certified

All-in-One 50L Beer Brewing System

Name: All-in-One 50L Beer Brewing System
Brand: BarEquip.Pro
SKU: BEP-0523
Price: 214661.0 THB
Availability: BackOrder

A compact 50-liter all-in-one brewhouse that mashes, ferments and chills in a single stainless-steel setup for small bars, taprooms and home brewers.

214,661.00 ฿

Shipping calculated separately

Lead time: 2–4 weeks

This all-in-one 50-liter brewing system packs a full craft-beer workflow into one 304 stainless-steel unit, so a bar, restaurant or taproom can brew on-site without a dedicated brewhouse. Each batch runs from mash through fermentation to chilling on the same skid, making it a practical way to test recipes or serve house beer at pilot scale before committing to a larger line.

The setup ships as a complete kit rather than a bare tank:

Mash tank plus wort pump for the hot side
Two fermenter tanks for parallel or staggered batches
Glycol tank and chiller for temperature control
Automatic controller managing the brewing cycle
Universal caster wheels for repositioning in tight venues

Inner and outer shells are Stainless steel 304 (2 mm inner, 1.5 mm outer), electric heating runs on 220V single-phase at 3.75 kW, and the frame measures 1800 x 800 x 1800 mm. It suits venues that want small-batch control, easy cleaning and a footprint that fits behind or beside the bar.

For serious home brewers, this 50-liter system turns a garage or basement corner into a real brewery. The automatic controller handles the temperature steps, the two fermenters let you run two beers at once, and the built-in glycol chiller keeps lagers at the right cold. Everything rides on caster wheels, so you can roll it out for brew day and tuck it away after. It runs on a standard 220V supply, and 304 stainless throughout means it wipes down clean batch after batch.

Specifications

Material: Stainless steel 304
Capacity: 50000 ml
Dimensions (L × W × H): 1800 × 800 × 1800 mm
Weight: 490.0 kg
Power: 3750 W
Voltage: 220V
Warranty: 3 years
Certifications: 2006/42/EC
Customization: OEM and configuration customization available
Heating type: Electric
Controller: Automatic
Working volume: 50 L
Batch production capacity: 50 L
Inner wall thickness: 2 mm
Outer wall thickness: 1.5 mm
Included components: Mash tank, controller, wort pump, 2 fermenter tanks, glycol tank, chiller, universal caster wheels

Frequently asked questions

What arrives in the crate, and what still has to be sourced separately?

Mash tank, wort pump, automatic controller, two fermenter tanks, glycol tank, chiller and a frame on universal caster wheels all ship together. Ingredients, hoses to your taps and any kegging or packaging gear are not part of the kit.

How do I size this to a taproom's output?

Figure 50 litres per batch, with two fermenter tanks so you can run a pair in parallel or stagger them and keep a house beer moving. That is pilot scale — recipe trials and one or two lines, not a full production run.

What electrical supply has to be in place before delivery?

A 220V single-phase circuit rated for the 3.75 kW electric heating load. There is no gas connection to plan for, which is part of why it drops into a bar back area.

How much floor space does it take, and can it be moved?

The frame measures 1800 x 800 x 1800 mm, so plan the bay around an 800 mm width and allow for the 1800 mm height. Universal caster wheels let staff reposition the whole skid for cleaning access or service.

What grade and gauge of steel is the vessel built from?

Stainless steel 304 throughout, 2 mm on the inner shell and 1.5 mm on the outer. That is the standard brewing grade for wort contact surfaces.

Can the configuration be changed, and what warranty applies?

OEM and configuration customisation are available, so specify any changes to the layout or fittings at the time of order. The system carries a 3 years warranty and is built to 2006/42/EC.

Is shipping included in the price?

For in-stock items — anything you can add to the cart — shipping is included in the listed price. For made-to-order items, delivery is either free (marked on the product page) or calculated when you place your order, based on destination and volume.

How long does delivery take?

In-stock items typically arrive within one to three weeks. Made-to-order items take three to six weeks, since we work directly with manufacturers and need time for production and logistics before shipping. Your assigned manager confirms a more precise estimate once your order is placed. Please note we can't be responsible for delays caused by customs clearance in the destination country.

Are import duties and taxes included?

In most cases, yes — we aim to ship Delivered Duty Paid (DDP), which means duties and import taxes are handled so you don't face extra charges on delivery. In rare cases we may ship Delivered Duty Unpaid (DDU), where you would settle import charges directly with the carrier — but only when agreed with you in advance.

Do your products come with a warranty?

Yes. Most of our equipment comes with a one-to-two-year manufacturer's warranty covering factory defects and technical faults under normal use; the specific term is stated on each product page. If a defect appears, we arrange a replacement or refund in line with our Exchange & Return Policy, and our team guides you through the claim step by step.
