Commercial Undercounter Drawer Refrigerator — GN Chiller
A stainless steel undercounter GN drawer chiller that holds prep at 0–5°C right under the line, in 4- to 12-drawer layouts.
From$ 1 500$ 1 71012% discount
Custom order
Made to order to your spec — you choose the size and configuration.

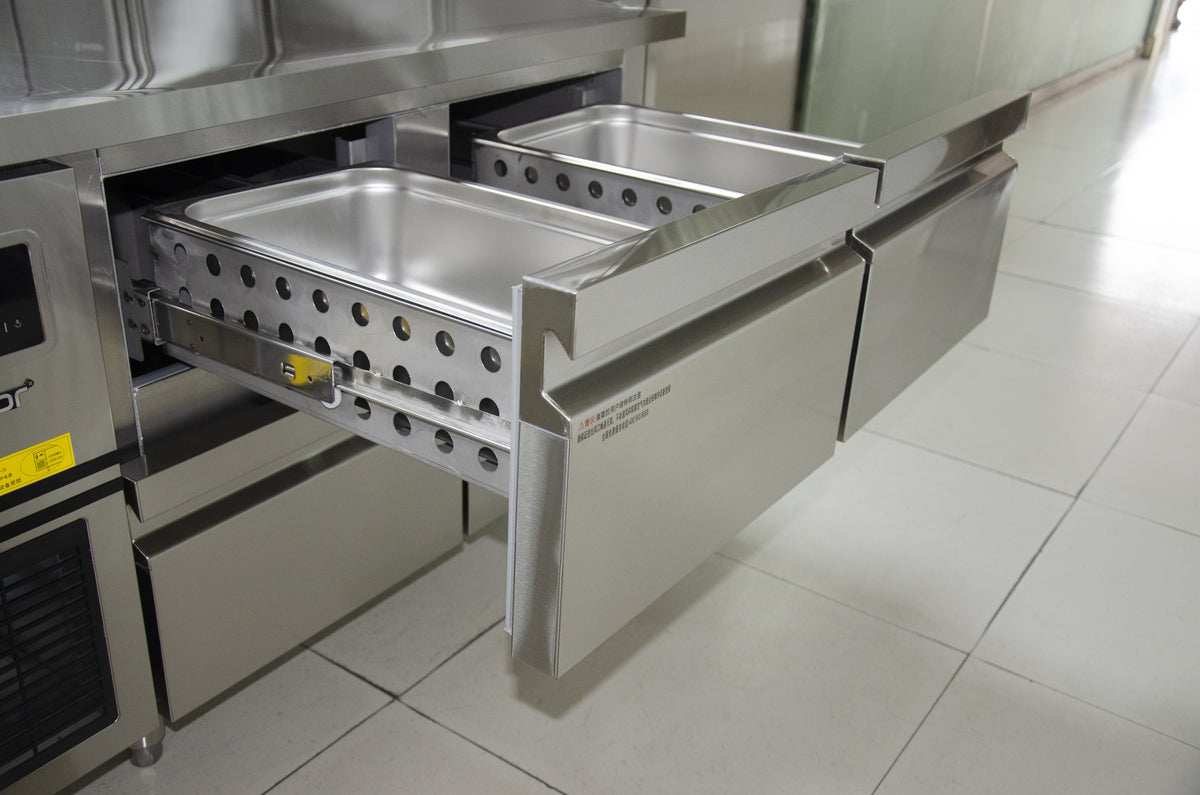

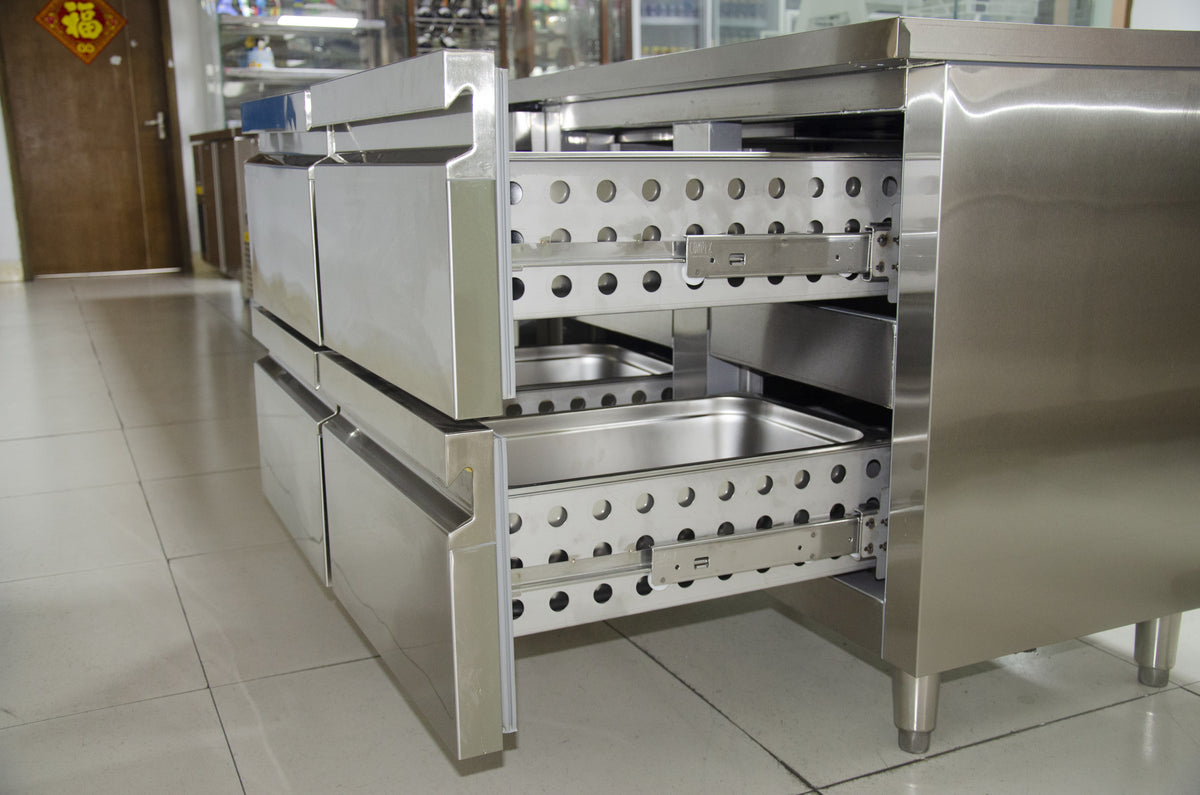

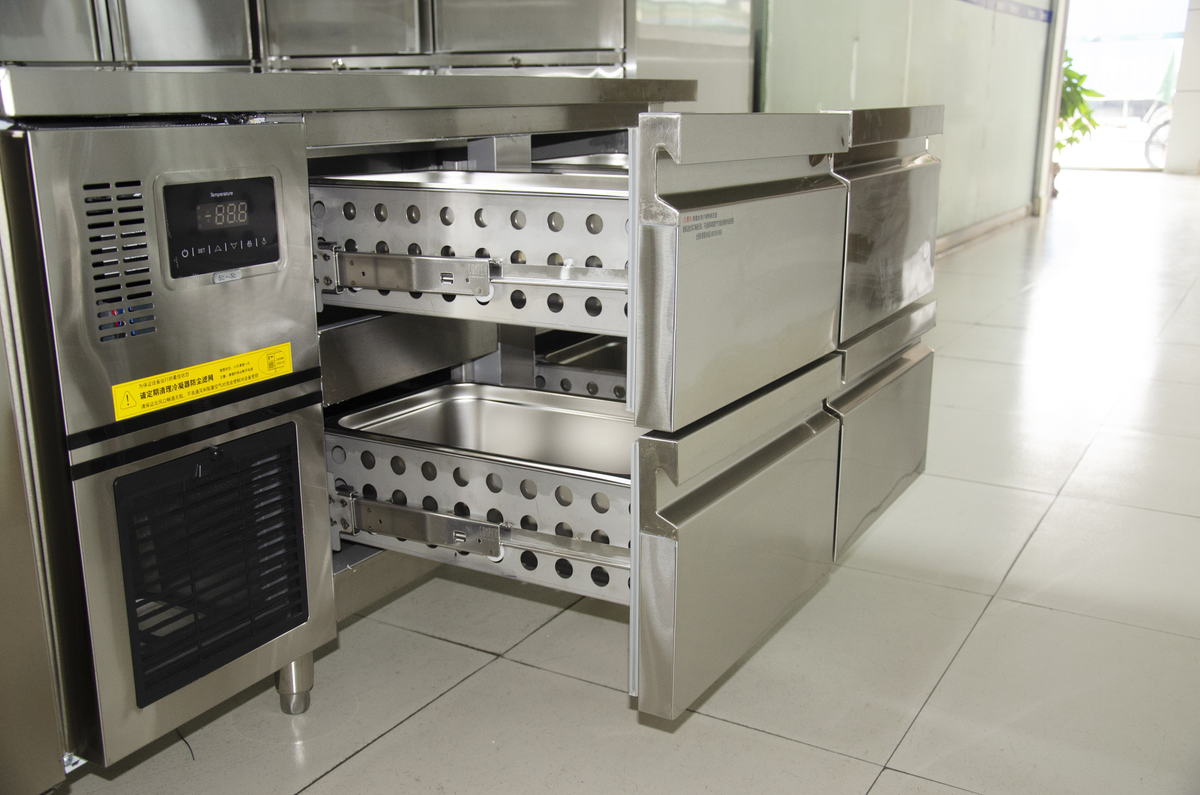

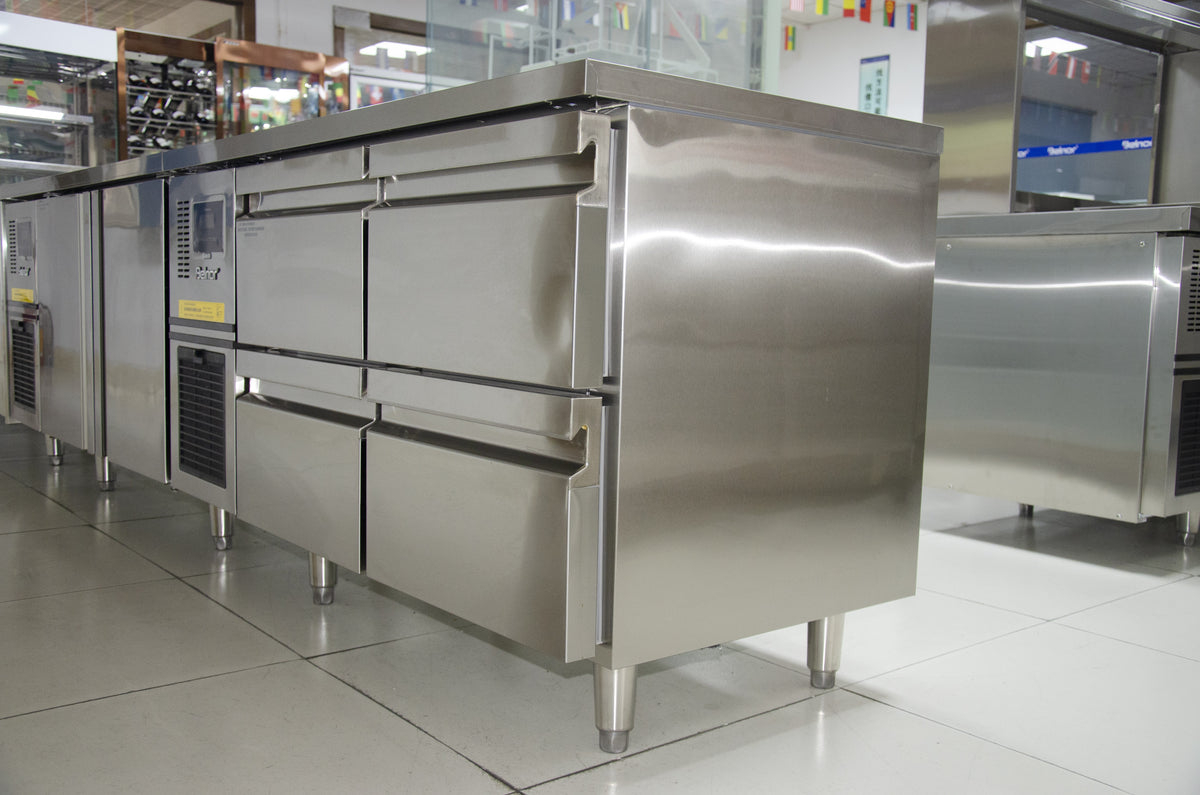

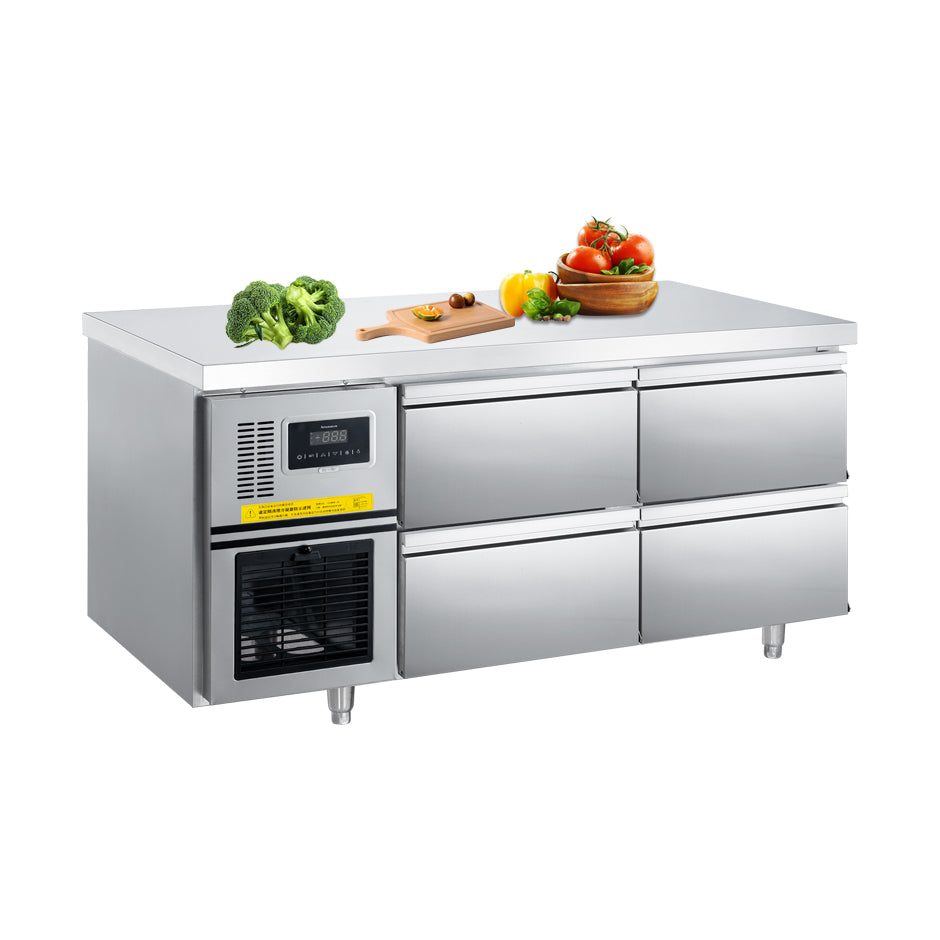

An undercounter drawer refrigerator is chilled storage built into the height of a work line, so cooks pull ingredients from GN drawers at 0–5°C without stepping away from the pass. The 304/201 stainless steel body sits under the counter as a work surface and a cold store at once, which suits tight restaurant, hotel and canteen kitchens where floor space is scarce. Digital temperature control and air cooling with R-134a refrigerant hold the cabinet steady, and the GN-compatible drawers take standard 1/1 pans for fast, organized service.

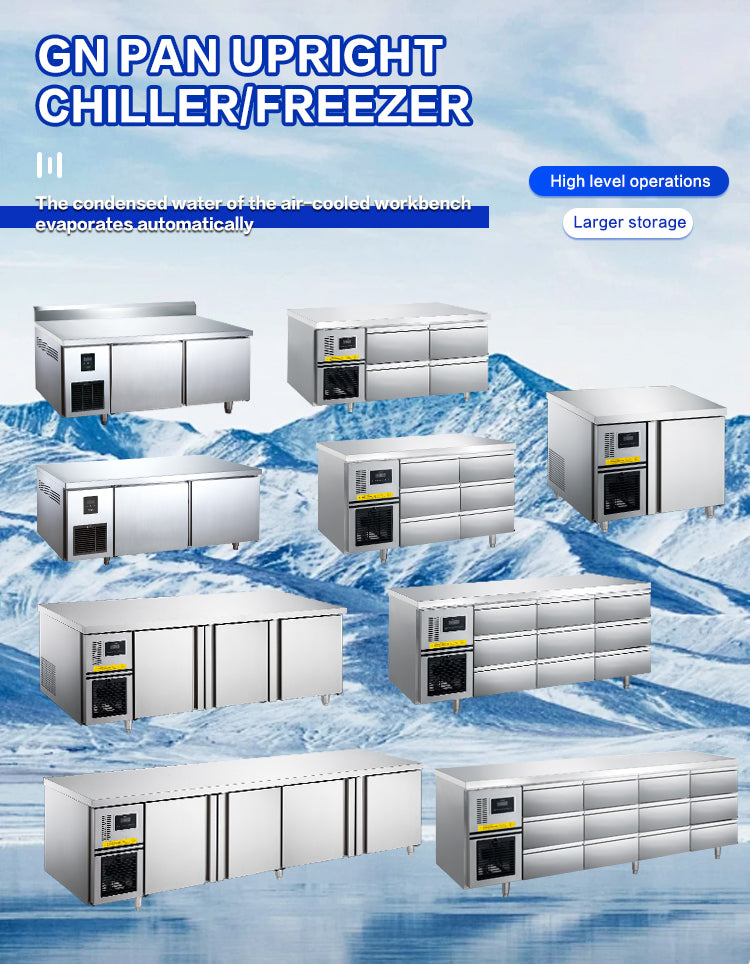

Drawer layouts from 4 to 12 GN drawers, 350–650 L net capacity
Operating range 0–5°C, rated for a 32°C ambient (climate class 4/5/7)
304/201 stainless steel construction with digital control
220V/50Hz or 110V/60Hz supply options
Specifications
Material
Stainless steel 304/201
Color
Stainless steel
Dimensions (L × W × H)
670 × 1370 × 850 mm
Weight
155.0 kg
Voltage
220V/50Hz or 110V/60Hz
Customization
OEM/ODM available
Type
Undercounter drawer refrigerator (GN chiller)
Temperature range
0 to 5 °C
Cooling system
Air cooling
Refrigerant
R-134a
Style
Single-temperature
Climate class
4, 5, 7
Ambient temperature
32 °C
Net capacity
350 L
GN pans
1/1 x 4
Drawers
4
Frequently asked questions
What temperature range does this drawer refrigerator hold?
It operates between 0°C and 5°C, a positive-chill range suited to holding fresh mise en place, dairy and prepped ingredients. The digital controller displays the setpoint so staff can confirm the cabinet is on target.
How many GN drawers and what capacity are available?
Layouts run from 4 drawers up to 12 drawers, with net capacity from 350 L on the compact unit to 650 L on the largest. The 4- and 6-drawer models share a 1370 mm width; the 9-drawer is 1835 mm and the 12-drawer is 2300 mm wide.
Do the drawers fit standard gastronorm pans?
Yes. The drawers are GN-compatible and take standard 1/1 gastronorm pans, so product moves straight from prep to cold storage to the line without transferring containers.
What voltage does the unit need?
It can be supplied for 220V/50Hz or 110V/60Hz. Confirm your required supply when ordering so the correct configuration is built.
What refrigerant and cooling system does it use?
It uses an air-cooled system with R-134a refrigerant, rated for ambient temperatures up to 32°C and climate classes 4, 5 and 7 — covering typical back-of-house conditions.
Is customization or branding available?
Yes, OEM and ODM options are available. Contact us to confirm the details for your configuration.
Is shipping included in the price?
For in-stock items — anything you can add to the cart — shipping is included in the listed price. For made-to-order items, delivery is either free (marked on the product page) or calculated when you place your order, based on destination and volume.
How long does delivery take?
In-stock items typically arrive within one to three weeks. Made-to-order items take three to six weeks, since we work directly with manufacturers and need time for production and logistics before shipping. Your assigned manager confirms a more precise estimate once your order is placed. Please note we can't be responsible for delays caused by customs clearance in the destination country.
Are import duties and taxes included?
In most cases, yes — we aim to ship Delivered Duty Paid (DDP), which means duties and import taxes are handled so you don't face extra charges on delivery. In rare cases we may ship Delivered Duty Unpaid (DDU), where you would settle import charges directly with the carrier — but only when agreed with you in advance.
Do your products come with a warranty?
Yes. Most of our equipment comes with a one-to-two-year manufacturer's warranty covering factory defects and technical faults under normal use; the specific term is stated on each product page. If a defect appears, we arrange a replacement or refund in line with our Exchange & Return Policy, and our team guides you through the claim step by step.
