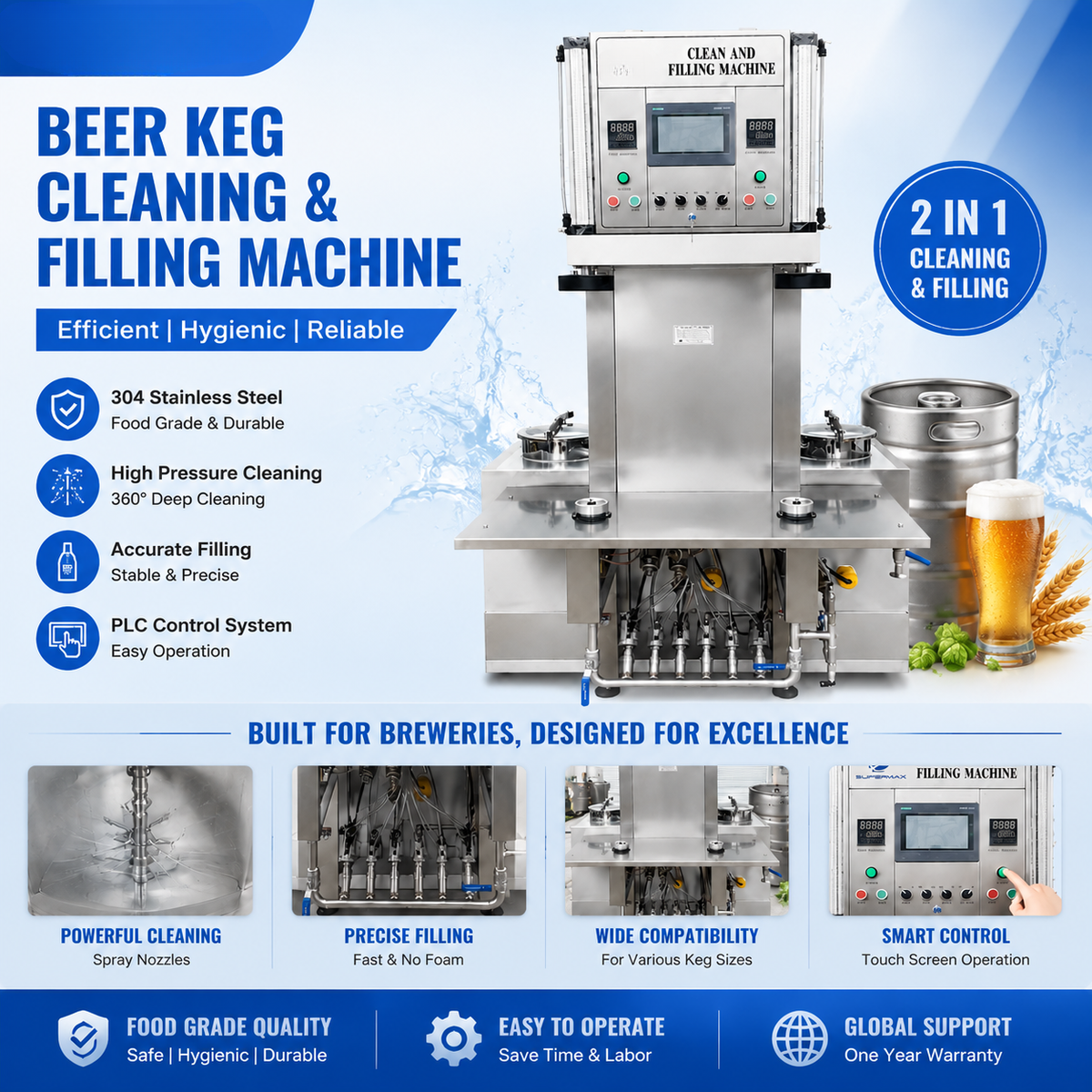

Beer keg cleaning and filling machine for a draft beer system, shown with a keg and filled glass

Semi-Automatic Beer Keg Washer & Filler

Name: Semi-Automatic Beer Keg Washer & Filler
Brand: BarEquip.Pro
SKU: BEP-0545
Price: 306674.0 THB
Availability: BackOrder

A semi-automatic keg washing and filling machine that cleans, sanitizes and fills beer kegs with CO2 back-pressurization in one PLC-controlled cycle.

306,674.00 ฿

Shipping calculated separately

Lead time: 2–4 weeks

This semi-automatic beer keg washer and filler cleans, sanitizes and fills kegs on a single PLC-controlled station, so a craft brewery or taproom can turn dirty returns around without a manual wash line. The operator loads a keg, selects a stored recipe on the touch-screen HMI, and the machine runs the full cycle: pre-rinse, hot caustic wash with heating, intermediate rinse, acid or sanitizer rinse, final rinse, then a CO2 back-pressurized fill. Time, temperature and pressure for each step are adjustable, so you dial the program to your caustic strength and keg condition instead of accepting fixed timings.

All wetted parts are mirror-polished to Ra ≤ 0.4 μm, fully TIG-welded and passivated, which keeps the flow path within brewery hygiene expectations (HACCP and FDA-oriented construction). Adaptable spear couplers handle Euro DIN kegs and US Sanke kegs in A, D, S and G types, and the quick-change spear head lets one machine serve a mixed keg fleet.

Full cycle in one station: pre-rinse, hot caustic wash, intermediate rinse, acid/sanitizer rinse, final rinse, CO2 fill
Single-head for small craft output; double and triple-head models run roughly 30–120 kegs/hr
Recipe storage with real-time temperature, pressure and cycle display, plus fault alarm and auto-stop
Chemical solution is reusable across cycles, cutting water and chemical use by up to 40–50%
SUS304/SUS316 food-grade stainless construction with electric or steam heating

Specifications

Material: SUS304, SUS316
Weight: 2000.0 kg
Warranty: 1 Year
Certifications: CE ISO
Customization: Voltage customizable; single/double/triple-head configurations
Control system: PLC, HMI touch panel, semi-automatic
Core components: PLC, pressure vessel, pump
Heating method: Electric or steam
Application: Beer keg washing and filling
Cleaning cycle: Pre-rinse, hot caustic wash, intermediate rinse, acid/sanitizer rinse, final rinse, CO2 back-pressurization
Throughput: 30–120 kegs/hr (model-dependent)

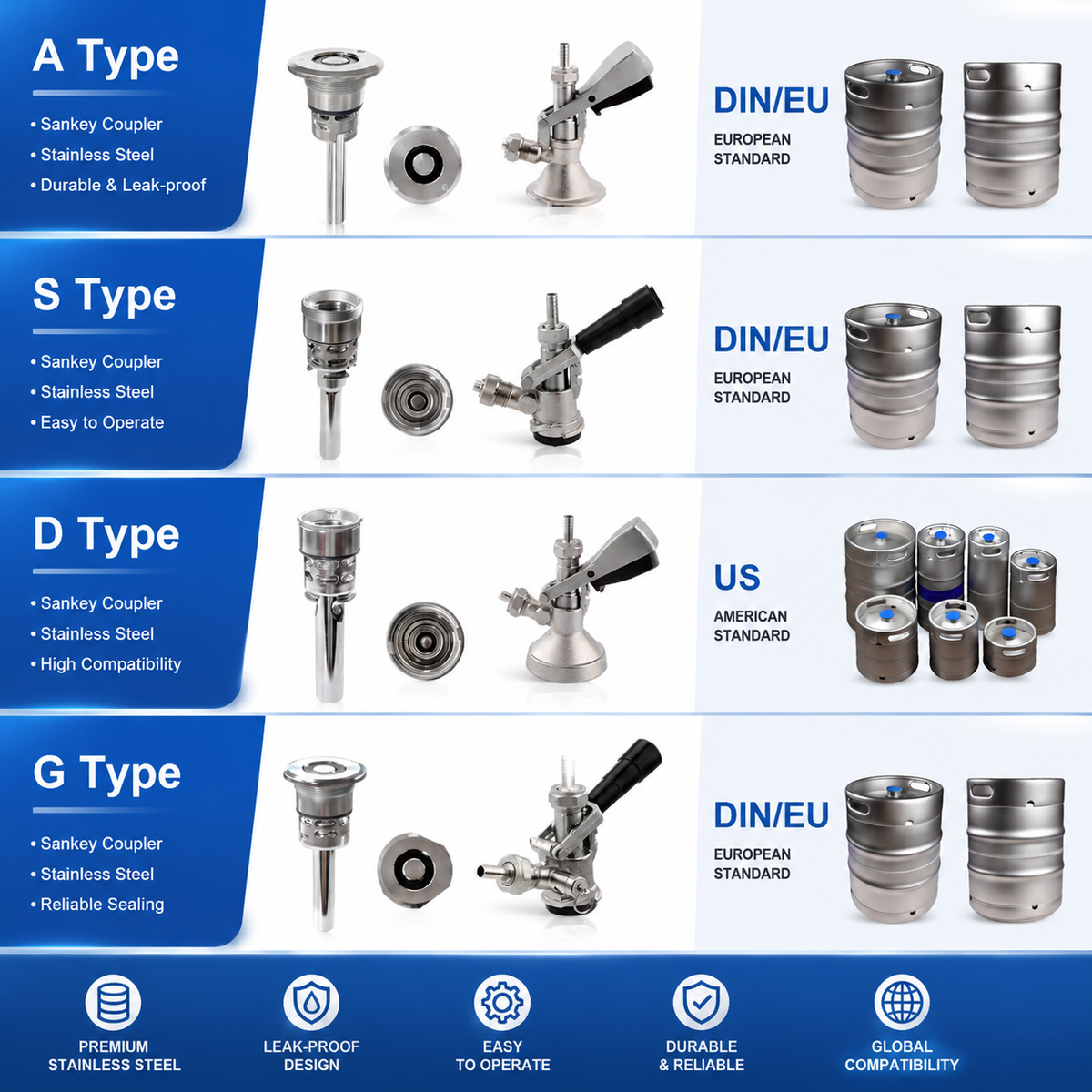

Keg compatibility: Euro DIN & US Sanke kegs (A/D/S/G type), quick-change spear head
Surface finish: Mirror-polished wetted parts, Ra ≤ 0.4 μm, TIG-welded & passivated
Hygiene compliance: HACCP / FDA-oriented construction
Chemical reuse savings: Up to 40–50% less water and chemical use
Service: Local installation and training included

Frequently asked questions

Which kegs and spear types does it couple to?

Euro DIN and US Sanke kegs in A, D, S and G spear types. The coupler head is quick-change, so a mixed fleet runs on one machine rather than forcing a single keg standard across your returns.

How do I choose between single, double and triple-head?

Match the head count to your weekly returns: single-head suits small craft output, while double and triple-head configurations cover roughly 30–120 kegs/hr. Specify the configuration when ordering, as heads are not added later.

What does one cycle actually do, and can I change it?

Pre-rinse, hot caustic wash with heating, intermediate rinse, acid or sanitizer rinse, final rinse, then CO2 back-pressurized fill. Time, temperature and pressure are adjustable per step in the PLC, and multiple recipes can be stored and recalled from the HMI.

How is the flow path finished?

All wetted parts are mirror-polished to Ra ≤ 0.4 μm, fully TIG-welded and passivated in SUS304/SUS316, giving HACCP and FDA-oriented construction through the whole wash and fill path.

Does the caustic go to drain after every keg?

No — the cleaning solution is held and reused across multiple cycles, which cuts water and chemical consumption by up to 40–50% against single-use washing.

What do I need to specify, and what comes with the machine?

State your voltage and whether you want electric or steam heating, plus single, double or triple-head. Local installation and operator training are included, and the machine carries a 1 Year warranty. CE and ISO certified.
