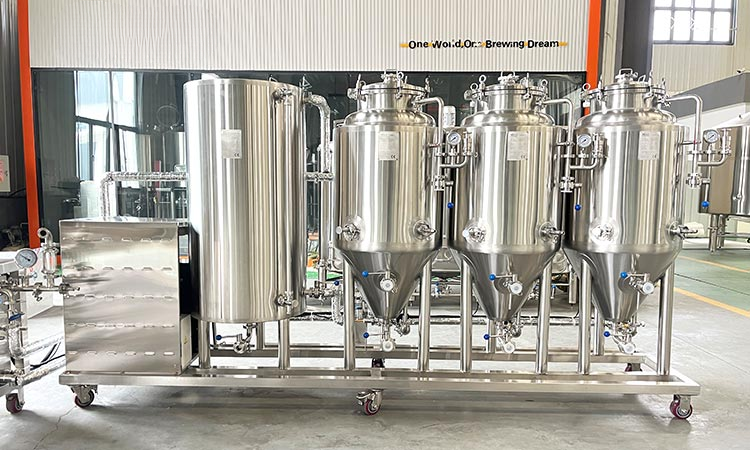

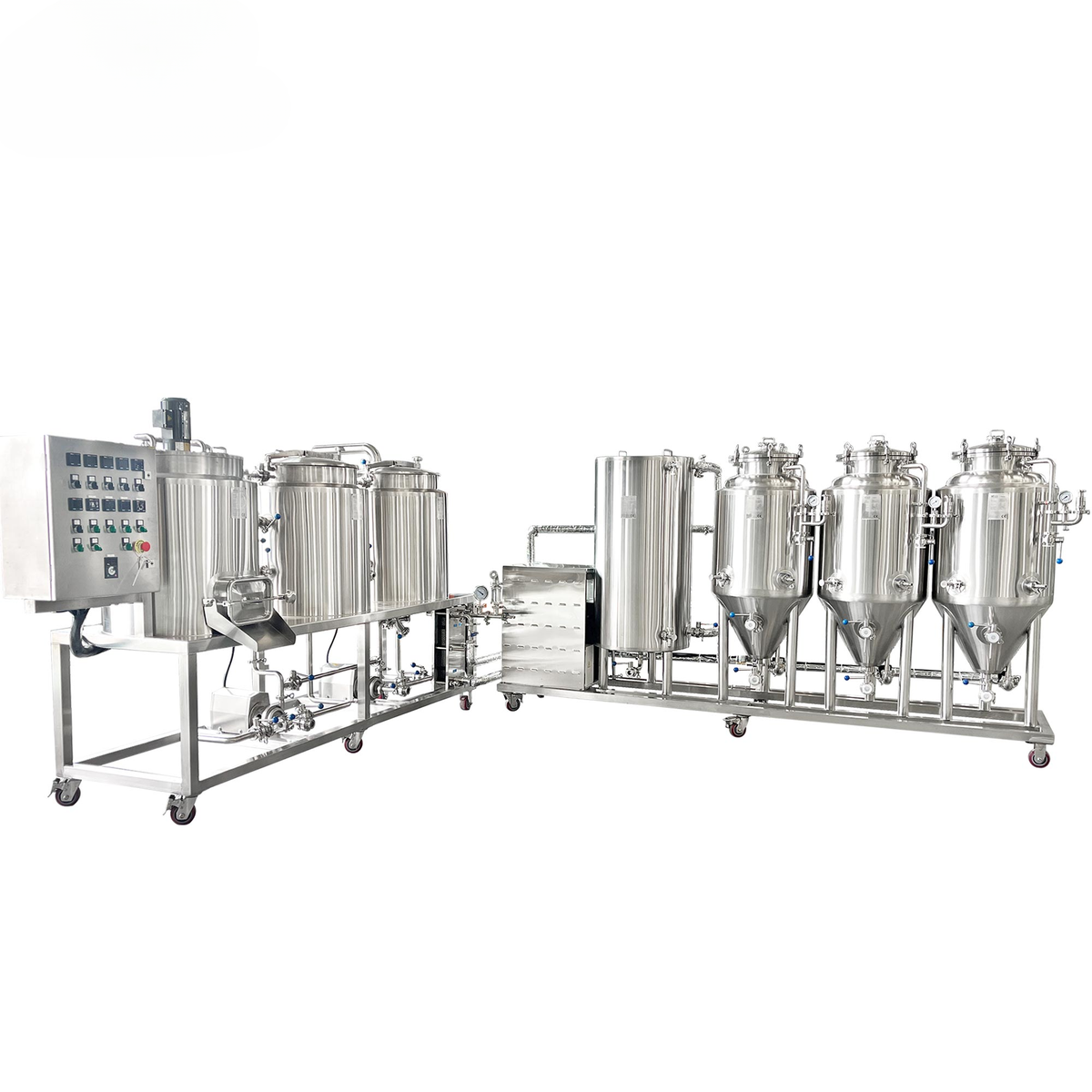

1 BBL Commercial Brewing System

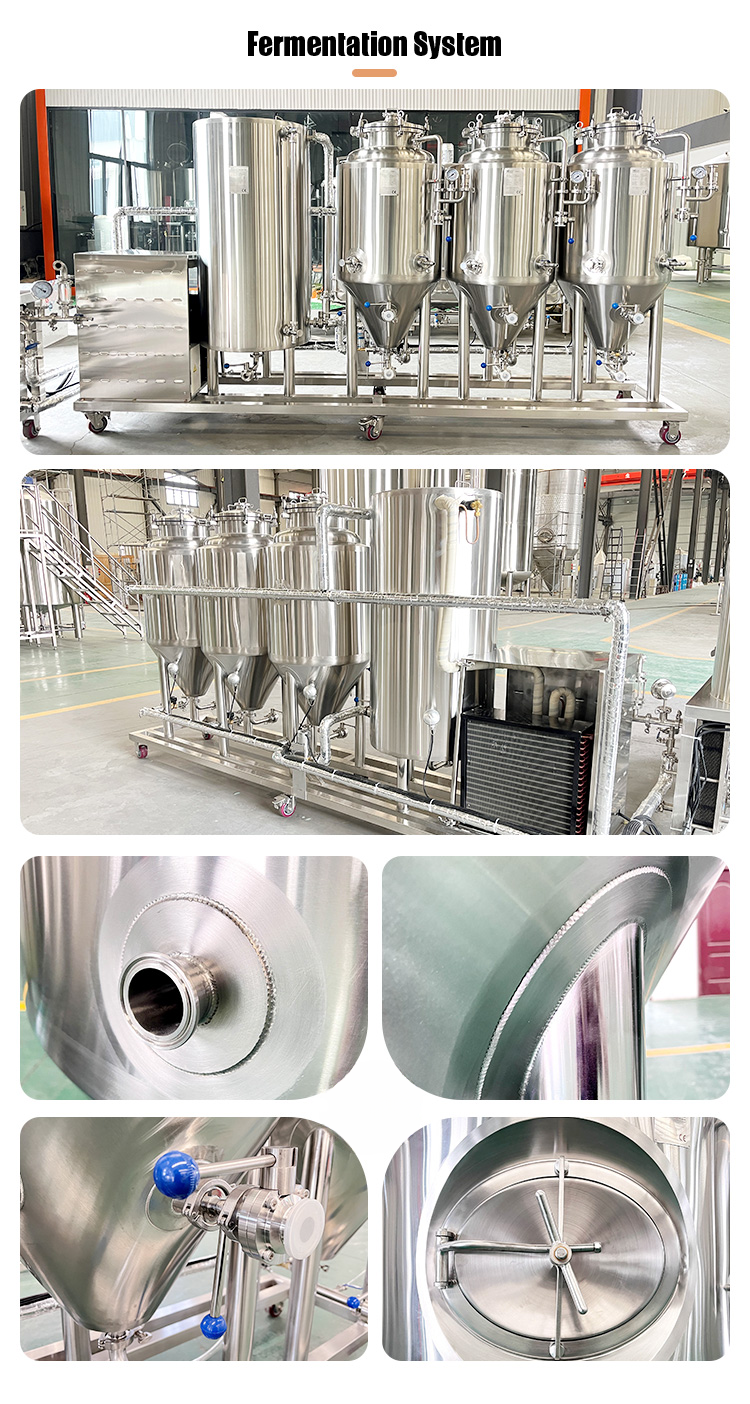

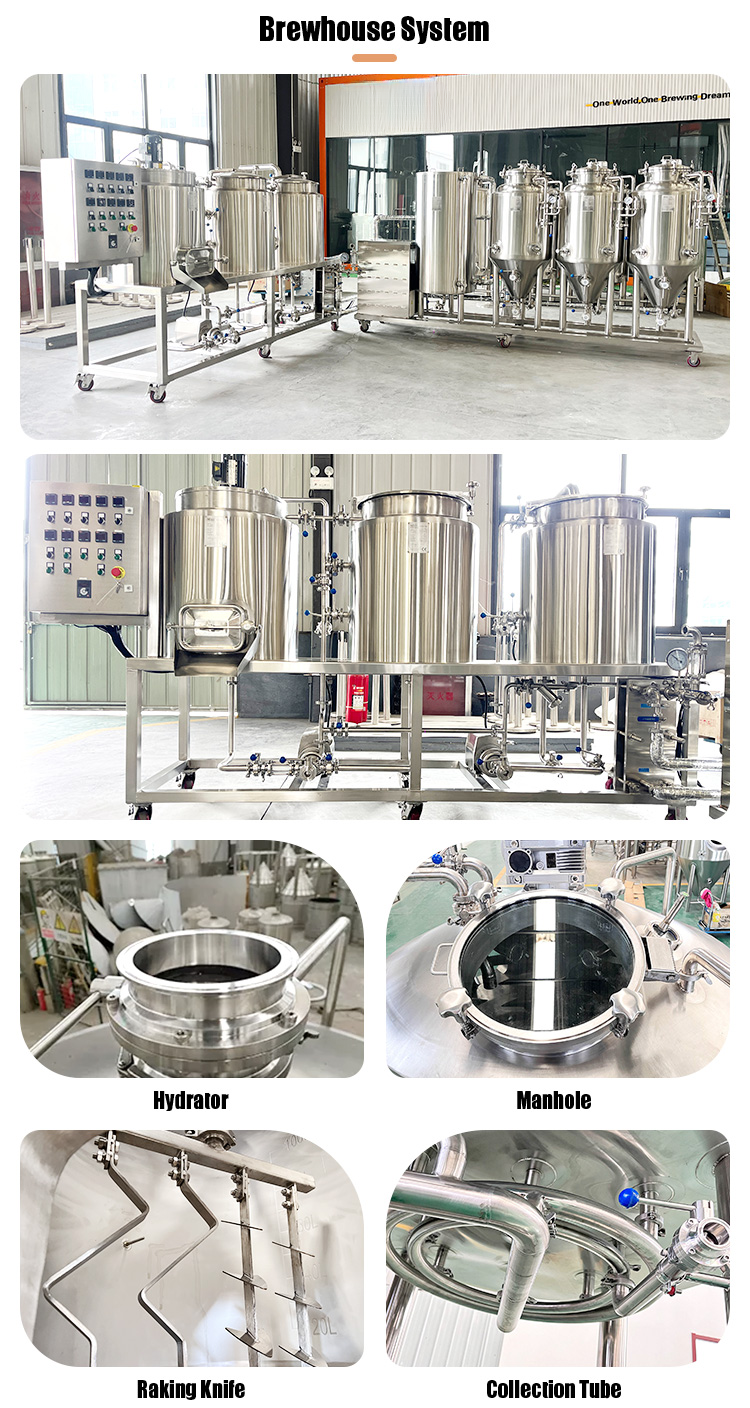

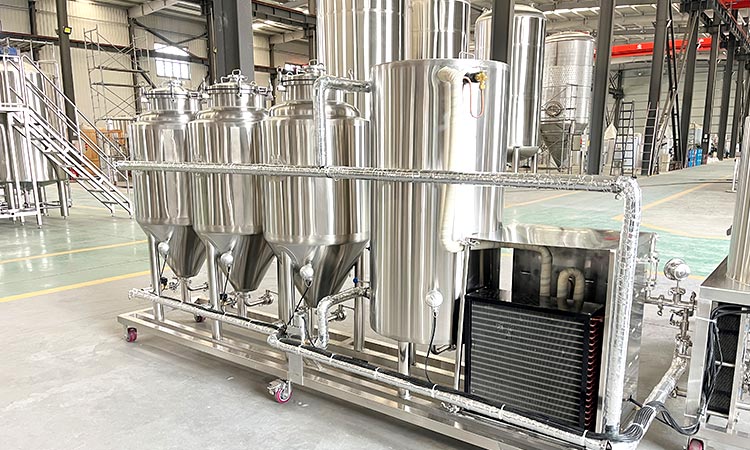

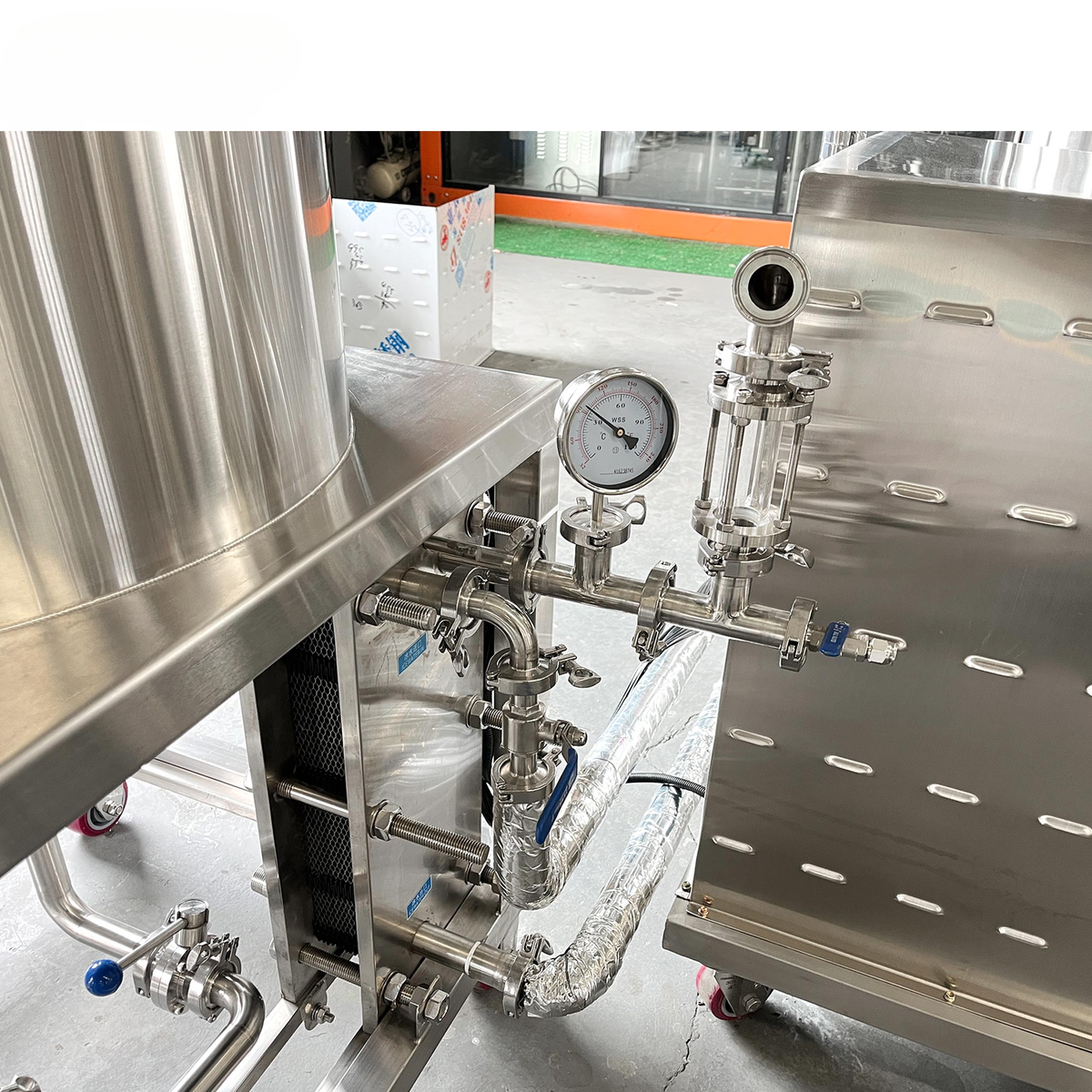

It is a turnkey setup covering every brewing stage: an optional malt milling system, a brewhouse with 600 L mash/lauter, kettle/whirlpool, and hot liquor tanks, six 600 L (or 1200 L double-batch) fermenters, a glycol cooling loop with a 3 HP chiller, a two-tank 50 L CIP cleaning unit, and a PLC or PID control cabinet. A plate heat exchanger, wort pump, hops filter, yeast tank, and oxygenation device are included.

The system runs 2 to 6 brews per week for a weekly output of roughly 10 to 30 HL, and a single brewmaster can operate it. That makes it a fit for brewpubs, startup microbreweries, and advanced homebrewers testing recipes at commercial scale.

It fits into under 45 m². The layout is coordinated so the brewhouse, fermentation, cooling, and cleaning stages share one compact footprint rather than sprawling across a large room.

Yes. The equipment design can be tailored to your brewing method and beer style up to 33 Plato, and heating (electric, steam, or direct fire), voltage, size, and color are all configurable. Contact us to confirm the exact specification for your recipes and space.

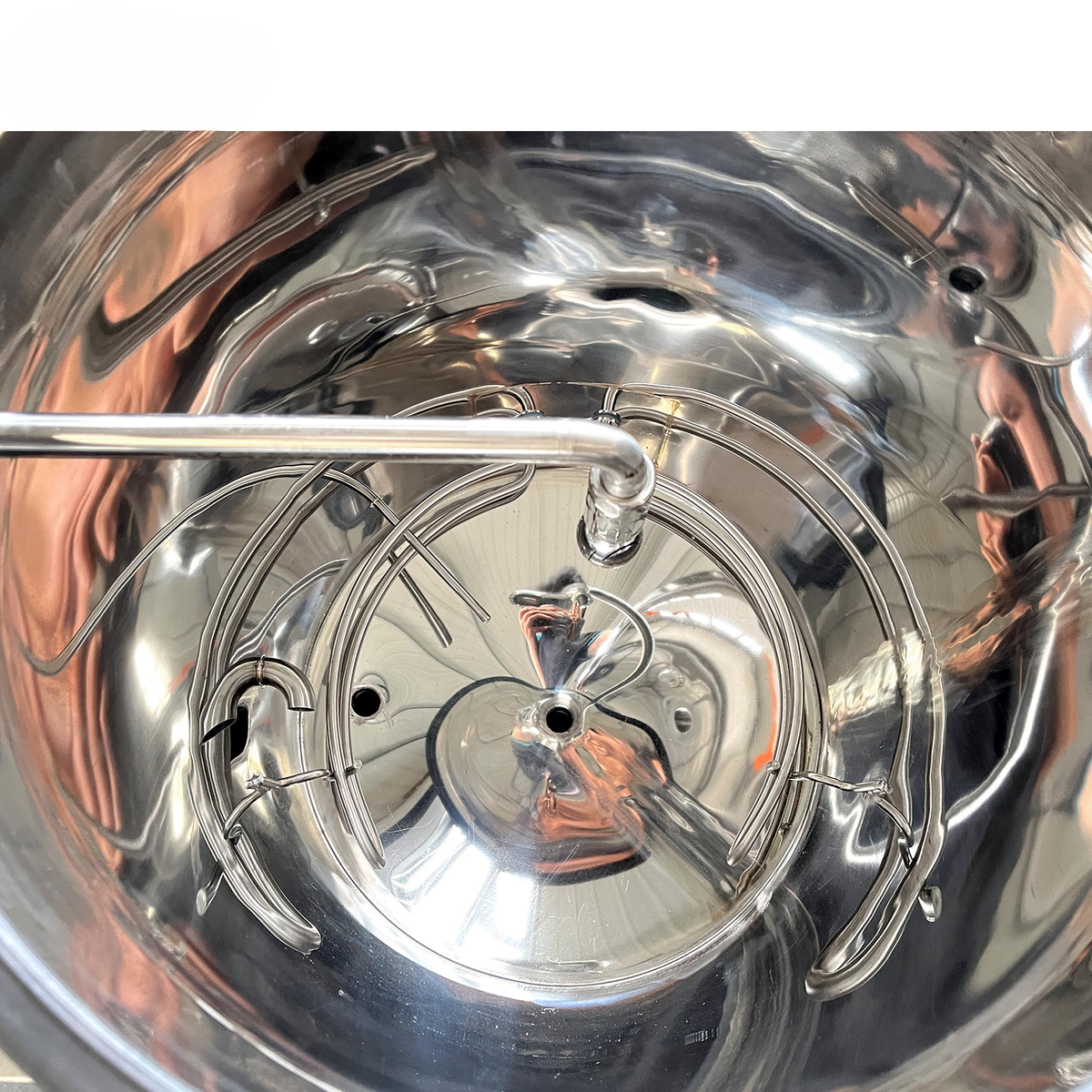

Construction uses SUS304 food-grade stainless steel with a 3 mm inner shell and 2 mm outer shell, joined with 100% TIG welding. Tanks get 6-pass mirror polishing to Ra 0.4 μm for 360° cleaning without dead ends, and dimpled cooling jackets are pressure-tested before shipping.

The main machine is backed by a 3-year manufacturer warranty, with a 1-year warranty on accessories and electronic components. During this period the manufacturer covers free repair or replacement of faulty parts, along with technical support.

For in-stock items — anything you can add to the cart — shipping is included in the listed price. For made-to-order items, delivery is either free (marked on the product page) or calculated when you place your order, based on destination and volume.

In-stock items typically arrive within one to three weeks. Made-to-order items take three to six weeks, since we work directly with manufacturers and need time for production and logistics before shipping. Your assigned manager confirms a more precise estimate once your order is placed. Please note we can't be responsible for delays caused by customs clearance in the destination country.

In most cases, yes — we aim to ship Delivered Duty Paid (DDP), which means duties and import taxes are handled so you don't face extra charges on delivery. In rare cases we may ship Delivered Duty Unpaid (DDU), where you would settle import charges directly with the carrier — but only when agreed with you in advance.

Yes. Most of our equipment comes with a one-to-two-year manufacturer's warranty covering factory defects and technical faults under normal use; the specific term is stated on each product page. If a defect appears, we arrange a replacement or refund in line with our Exchange & Return Policy, and our team guides you through the claim step by step.
