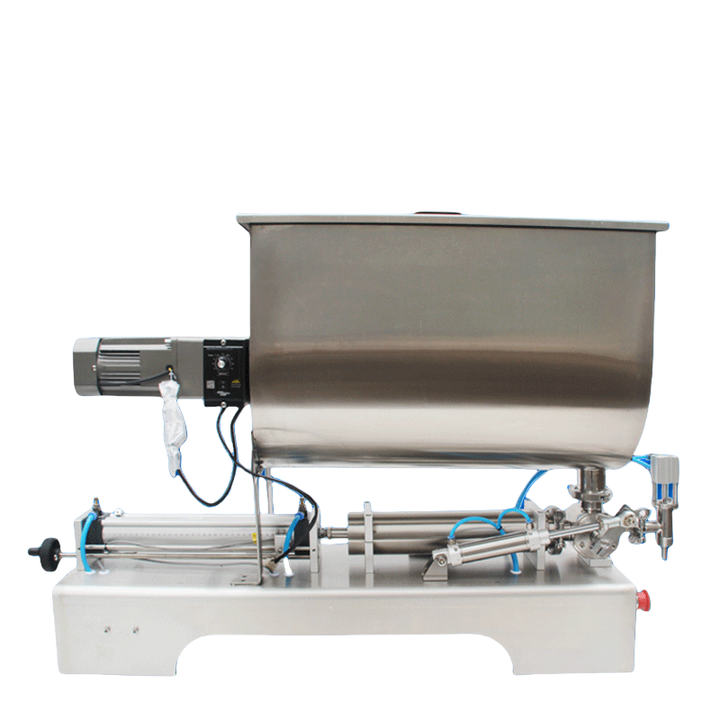

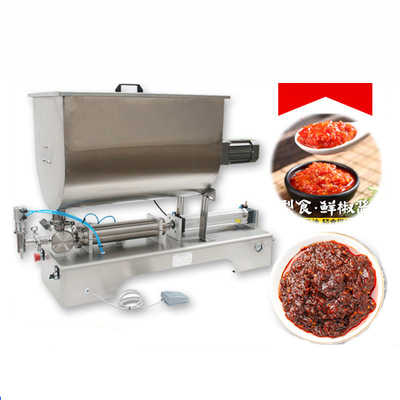

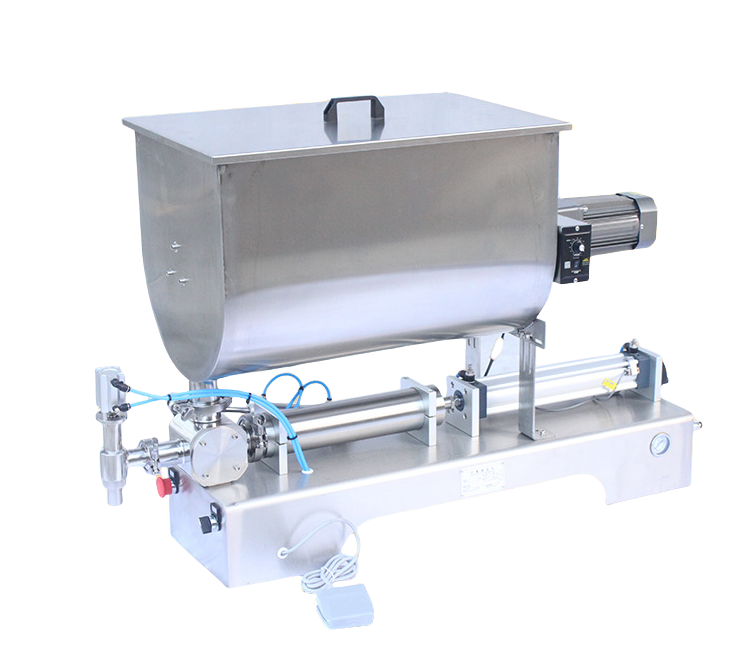

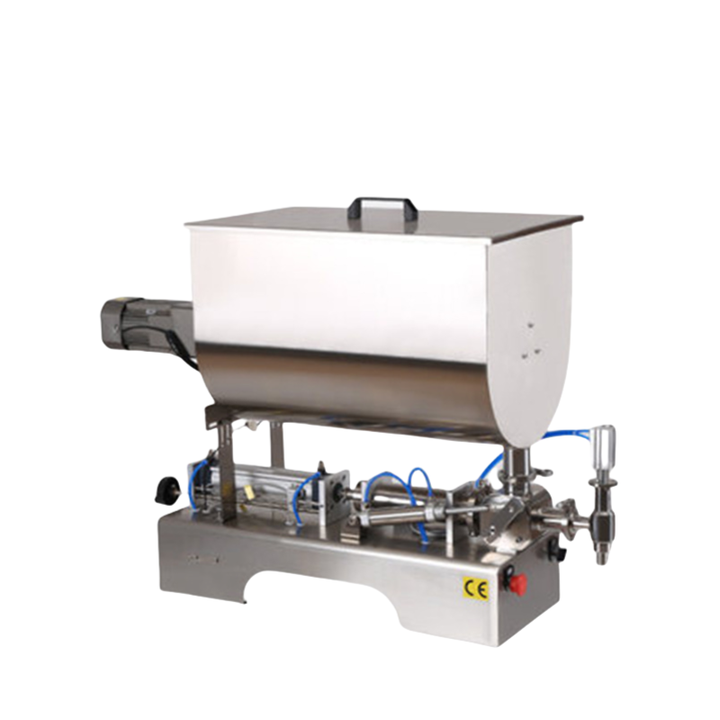

A semi-automatic piston filler with a heated jacketed hopper and agitator, built to portion thick pastes like jam, peanut butter and sauces.
$ 1 313$ 1 49712% discount
Shipping calculated separately
Lead time: 2–4 weeks

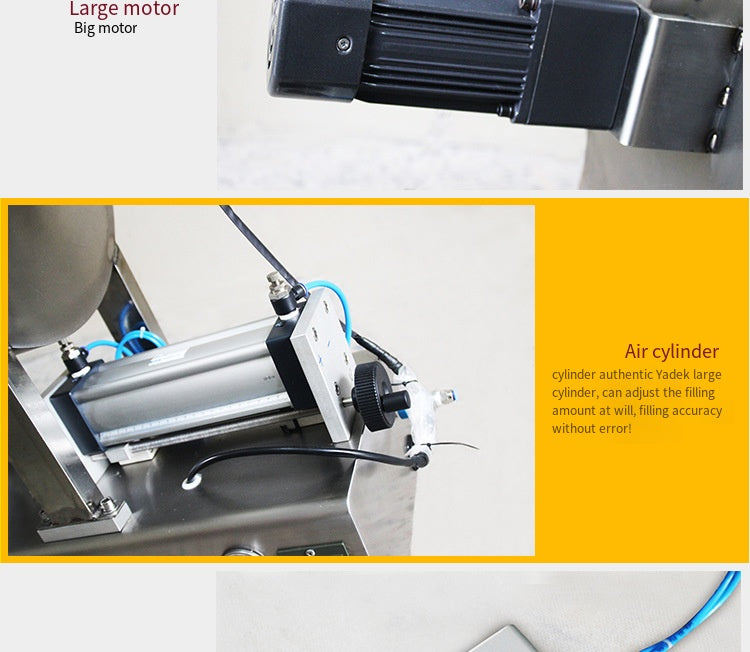

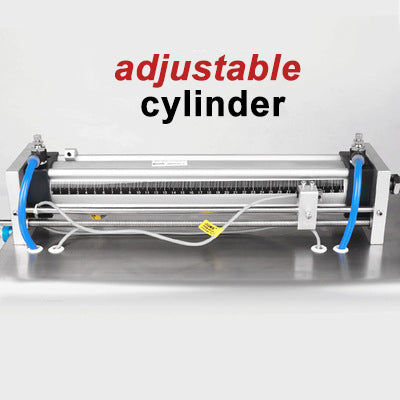

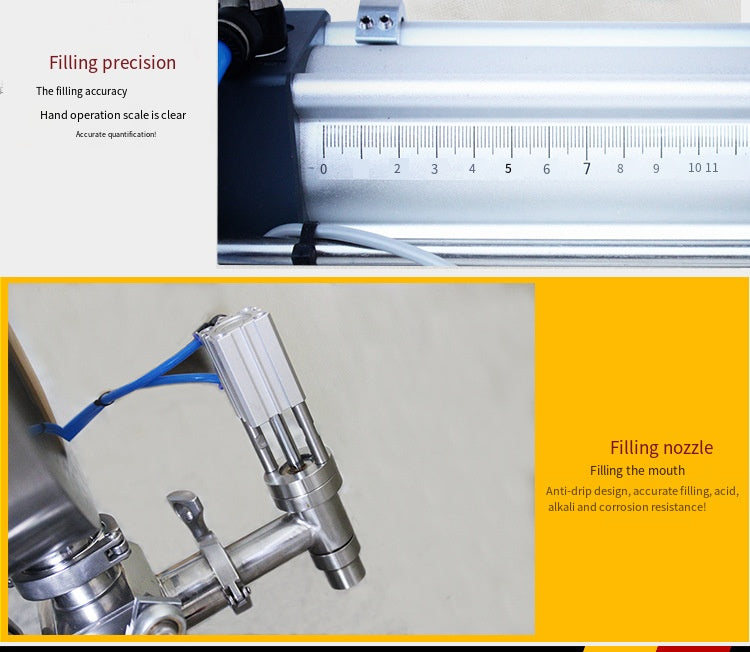

The piston filling machine handles the products that gravity fillers can't: chili sauce, peanut butter, jam and other high-viscosity pastes that need pressure to move. A pneumatic cylinder drives the piston to draw product from the U-type hopper and eject a measured shot through the nozzle, while a three-way steering valve controls flow and a magnetic switch on the cylinder stroke sets the fill volume. Accuracy holds to within 1%, so each can, bottle or pouch gets a consistent portion.

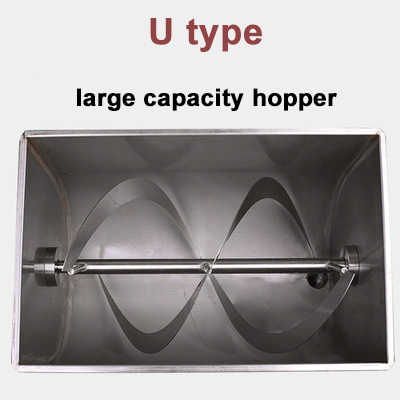

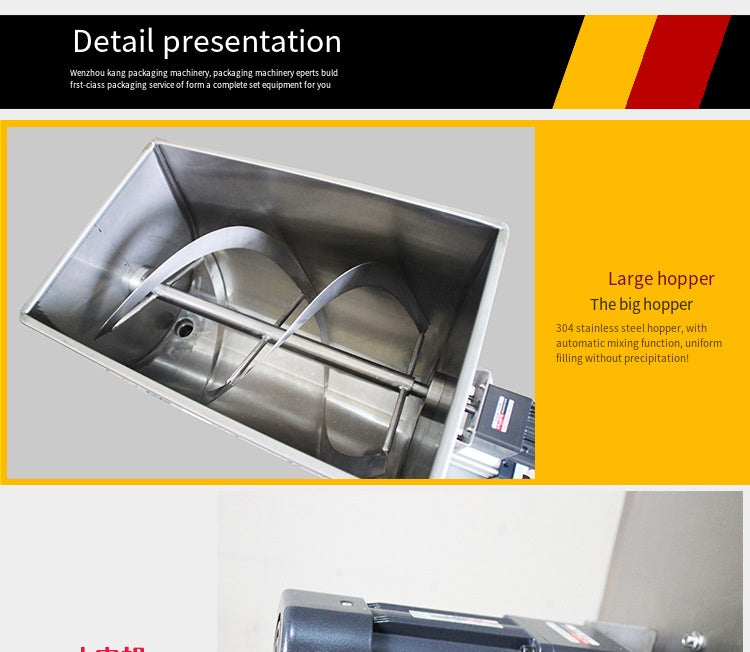

The hopper is double-jacketed and stainless steel, so you can heat product to keep it flowing and run the agitator to hold a paste homogeneous during a run — useful for batches that thicken or separate at room temperature. That makes it a single station for light mixing, heating and filling rather than three separate steps.
Two fill modes: pedal-triggered semi-auto and continuous automatic, switchable on the fly
Fill speed of 10–30 bottles per minute at 1% accuracy
Single nozzle; runs off 220 V, 110 V or 380 V
Stainless-steel contact parts suited to food, cosmetic and light chemical products
It suits small and mid-size producers packaging viscous food, cosmetics (cream, lotion, shampoo) or similar products into cans, bottles, jars and pouches. Backed by a 2-year manufacturer warranty.
Specifications
Material
Stainless steel
Color
Silver

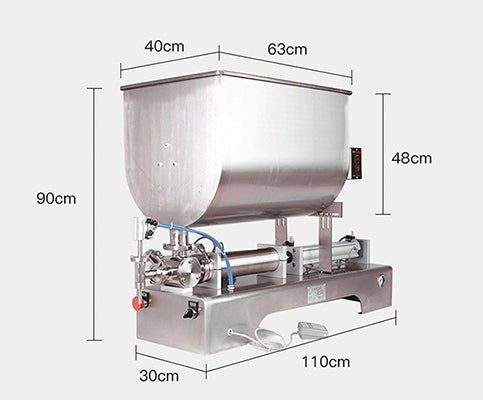

Dimensions (L × W × H)
480 × 1150 × 920 mm
Weight
100.0 kg
Voltage
220 V / 110 V / 380 V (220V 50/60Hz)
Warranty
2 years
Customization
Custom logo and machine configuration available on request
Filling accuracy
1 %
Filling speed
10-30 bottles/min
Automation grade
Semi-automatic (pedal + continuous auto)
Number of nozzles
1
Drive type
Electric / pneumatic cylinder
Core components
Motor, pump, pressure vessel
Hopper
U-type double-jacketed heated hopper with agitator
Frequently asked questions
What products can this piston filling machine handle?
It's built for high-viscosity products: chili sauce, peanut butter, jam and similar thick pastes, plus cosmetics like cream, lotion and shampoo. The heated jacketed hopper and agitator keep dense product flowing and homogeneous during a run.
How accurate is each fill and how fast does it run?
Fill accuracy holds to within 1%. Speed runs 10-30 bottles per minute through a single nozzle, depending on fill volume and product viscosity.
Is this a semi-automatic or fully automatic filler?
It's semi-automatic, with two modes you can switch between at any time: a pedal-triggered mode for shot-by-shot filling and a continuous automatic mode for steady runs.
Can the hopper heat and mix the product?
Yes. The U-type hopper is double-jacketed so you can heat the product to keep it flowing, and the built-in agitator mixes it during filling to stop thick pastes from separating.
What voltage does the machine need?
It's available for 220 V, 110 V or 380 V supply (220V 50/60Hz). Please confirm your required voltage when ordering.
Is there a warranty and technical support?
Yes. It's backed by a 2-year manufacturer warranty, with online and video technical support. An English manual and test report are supplied with the machine.
