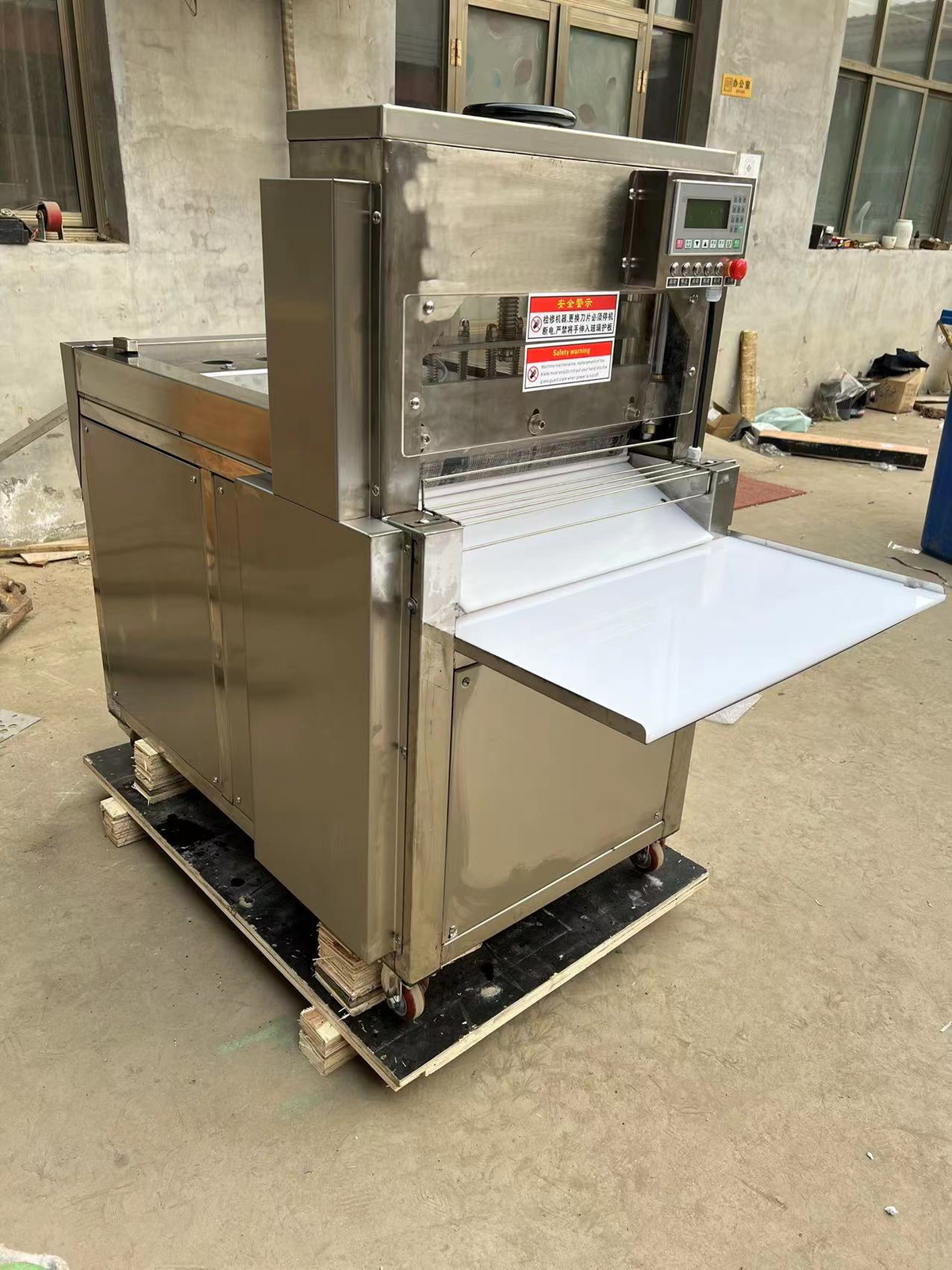

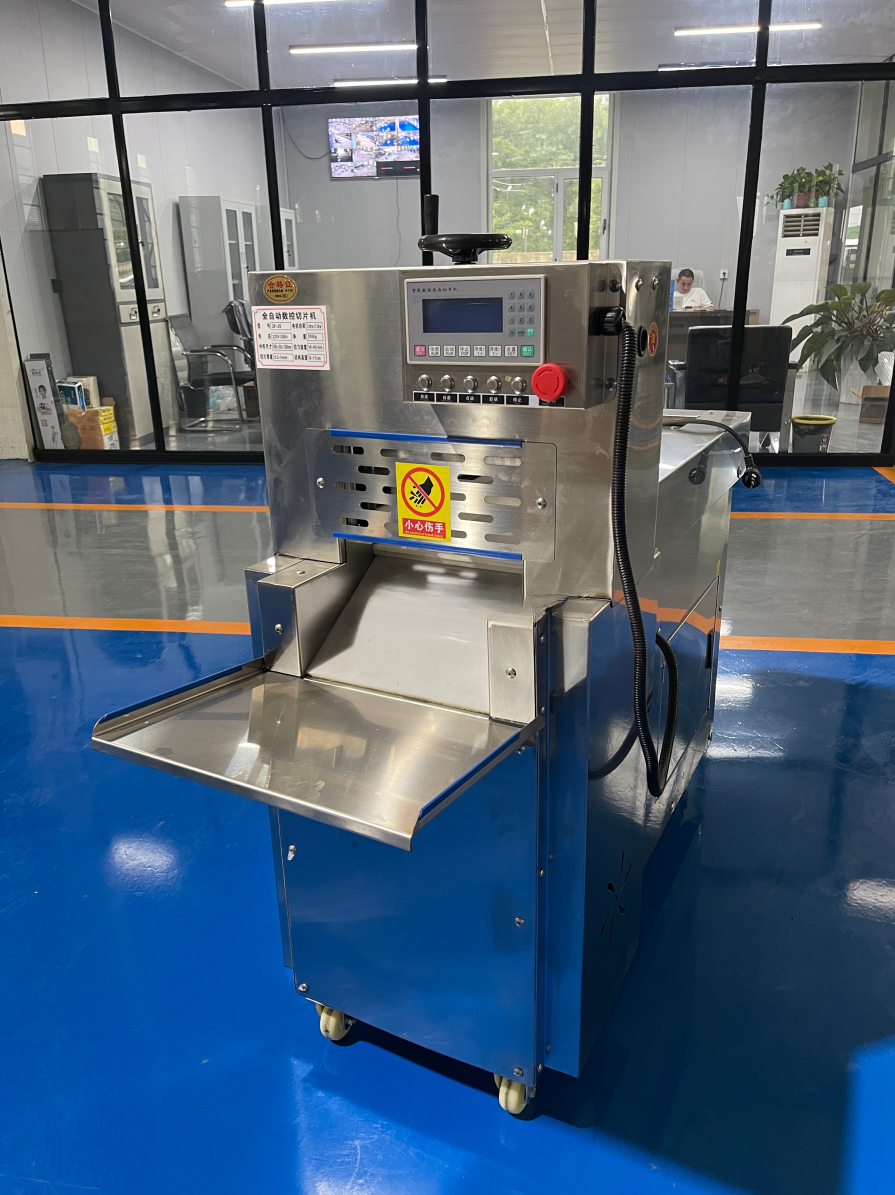

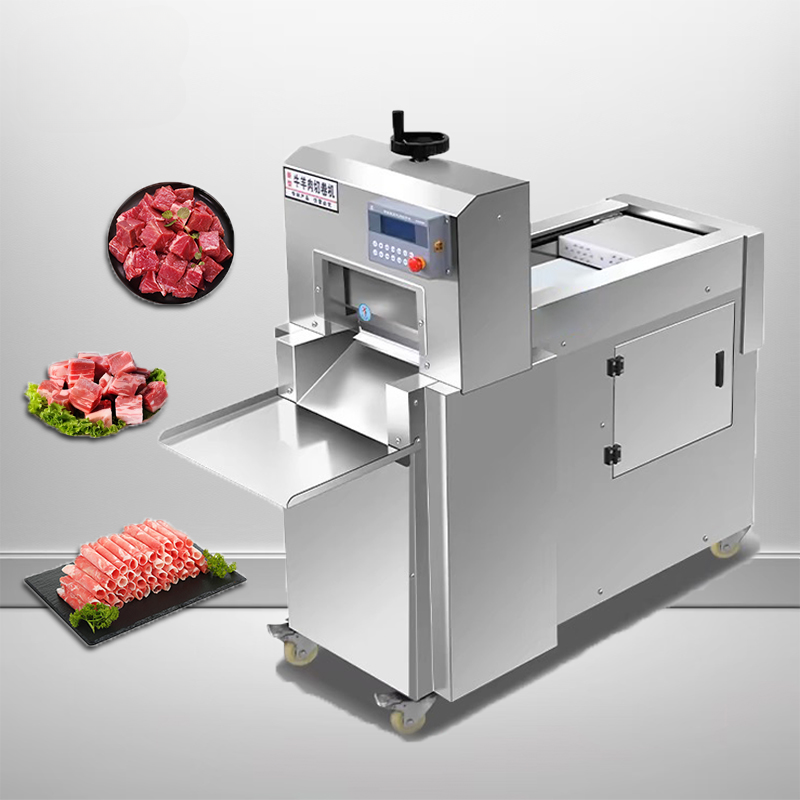

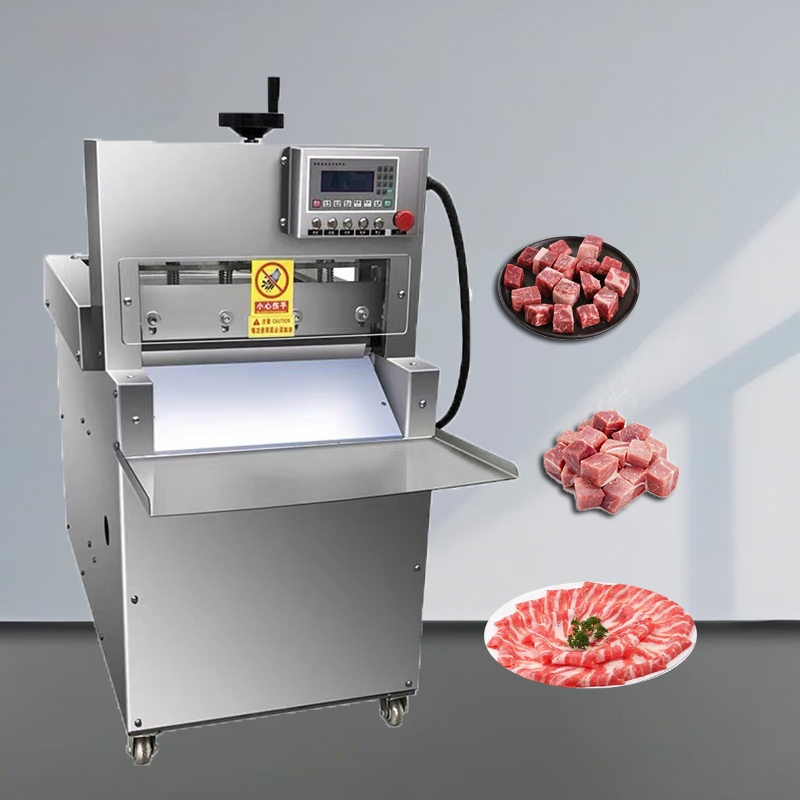

Commercial meat slicer with control panel, on casters, next to plated diced and sliced frozen meat

Frozen Meat Roll Cutting Machine — Automatic Beef & Mutton Slicer

Name: Frozen Meat Roll Cutting Machine — Automatic Beef & Mutton Slicer
Brand: BarEquip.Pro
SKU: BEP-0709-05

Automatic frozen meat slicer that cuts and rolls beef, mutton, pork and fish straight from -18°C with slices from 0.1 mm — up to 8, 20, 50 or 100 mm depending on the model.

From53,410.00 ฿

Custom order

Made to order to your spec — you choose the size and configuration.

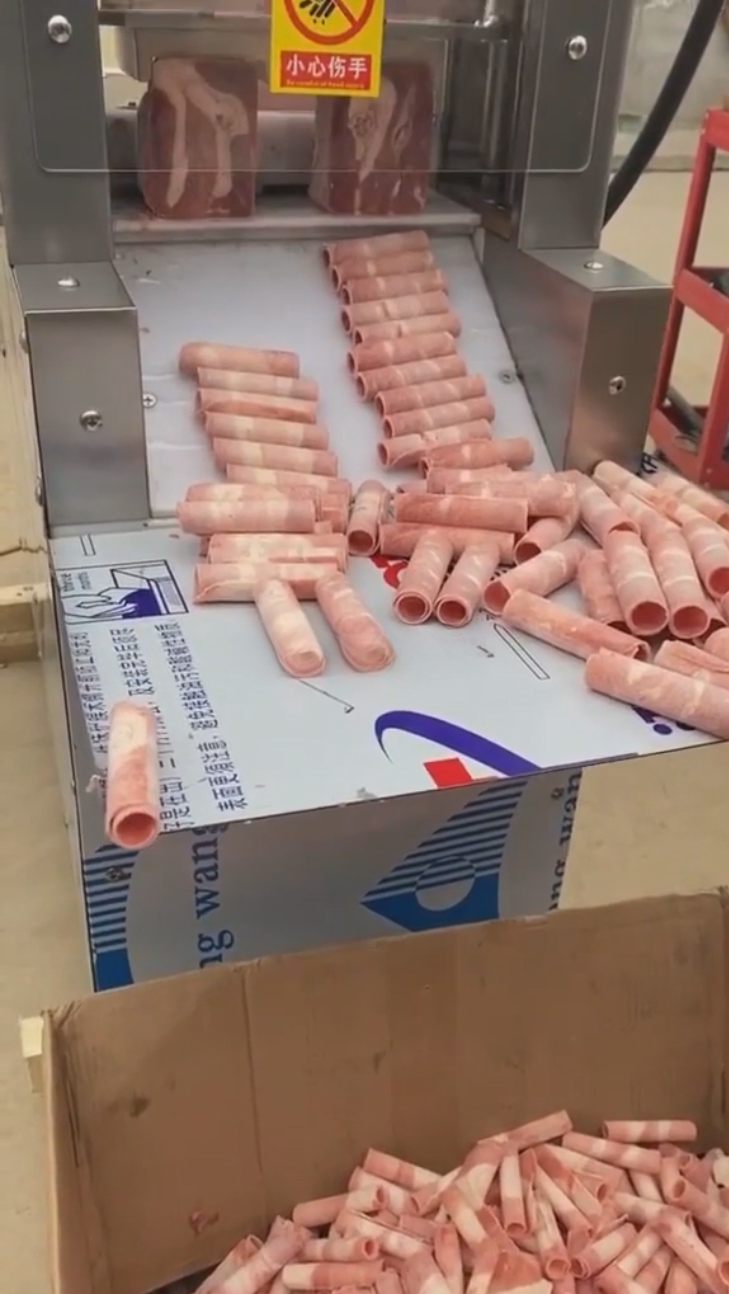

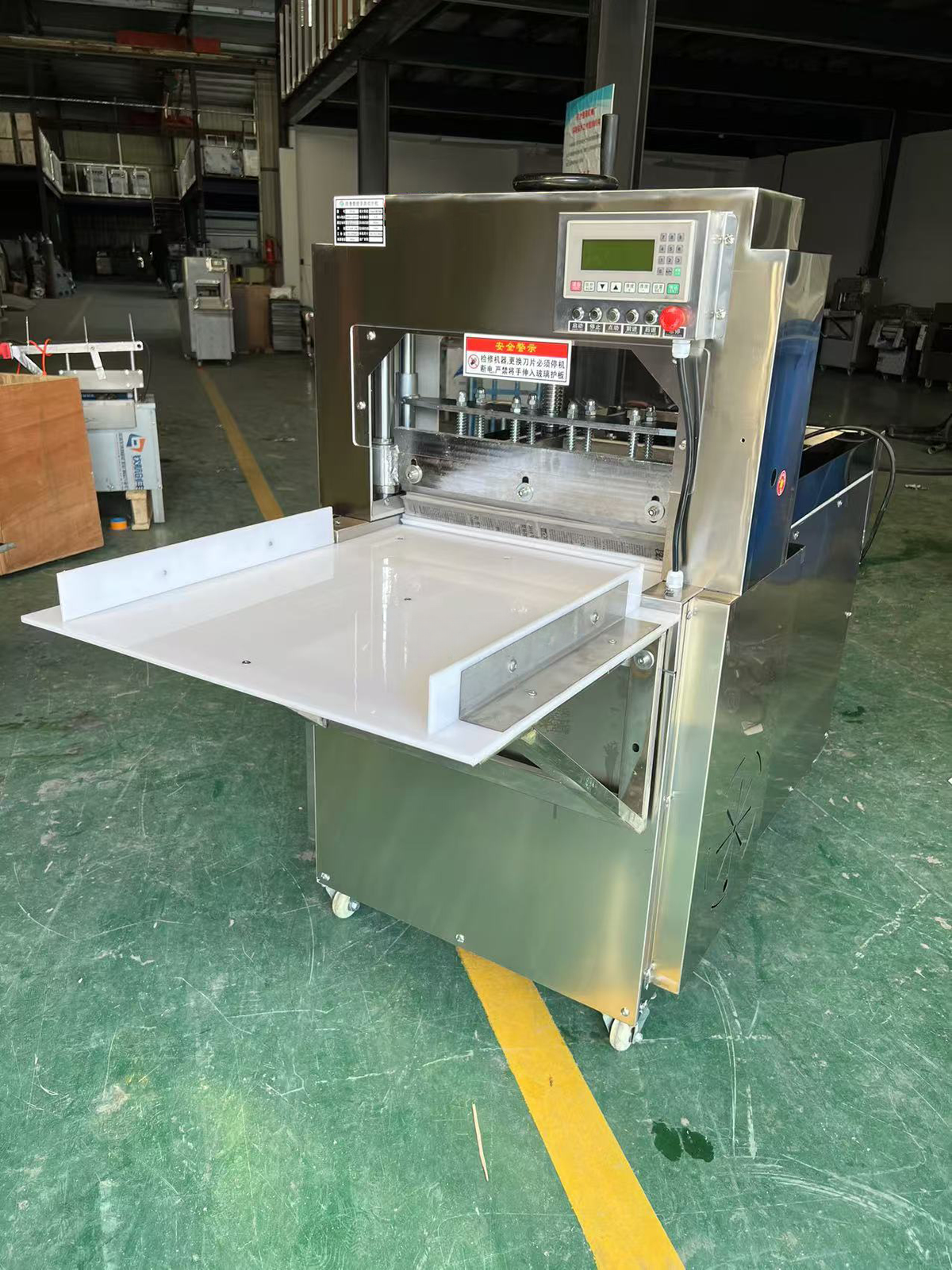

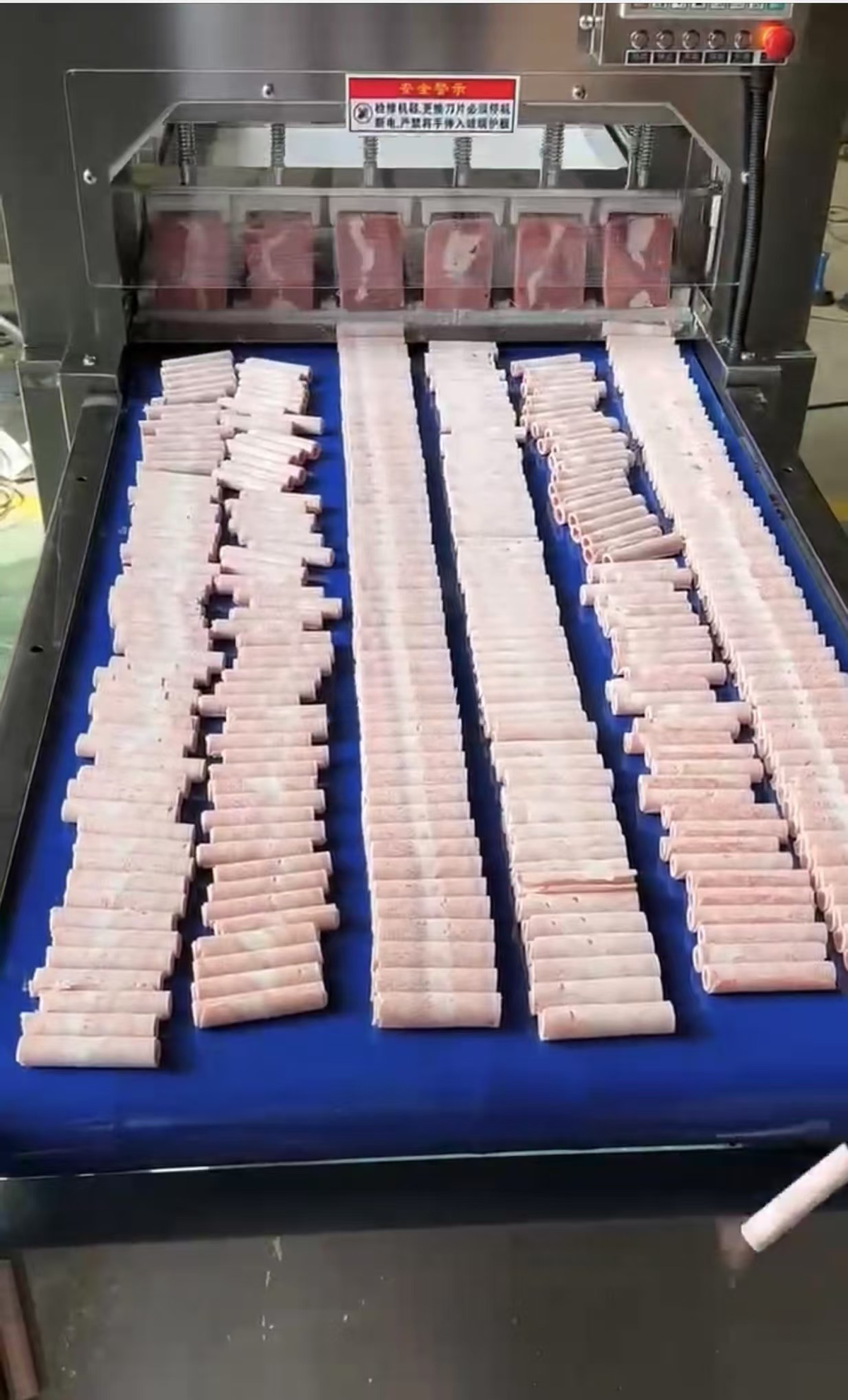

A frozen meat roll cutting machine is a stainless steel slicer built for meat processing plants, central kitchens and hotpot suppliers that portion beef, mutton, pork and fish in volume. It takes fresh or frozen blocks — no thawing needed, down to -18°C — and cuts even, unbroken slices or rolls at a thickness you set on the CNC panel. Feeding, pressing, thickness and shutdown run as one automated cycle: electric push feed steps the meat forward, the cutter and conveyor sync automatically, and the machine stops and retracts the push board once the block is done.

Roll counts from 1 to 8, matching outputs of 50–400 kg/h — pick the model to your throughput.

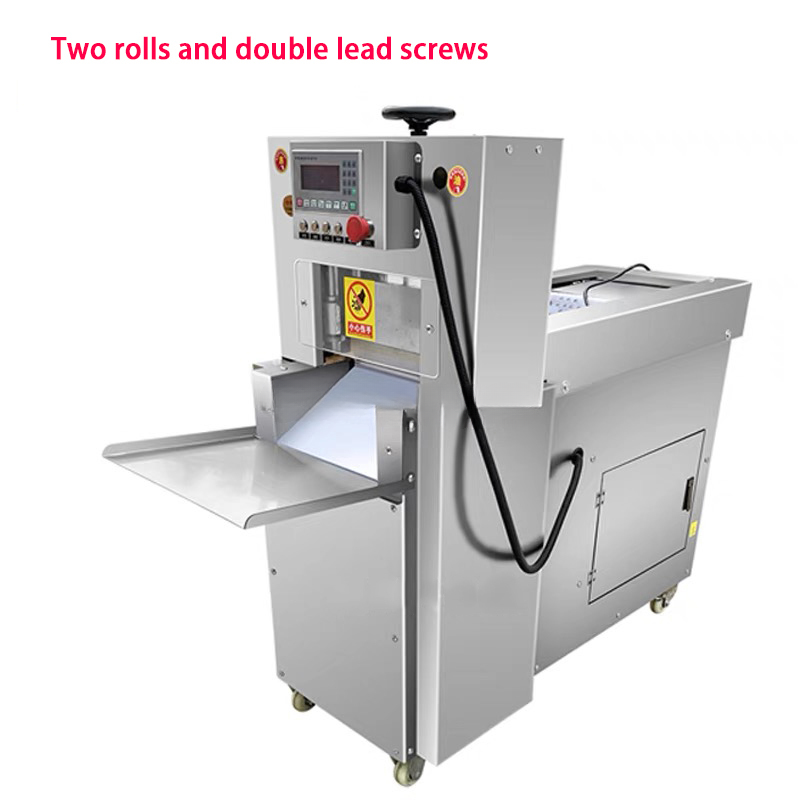

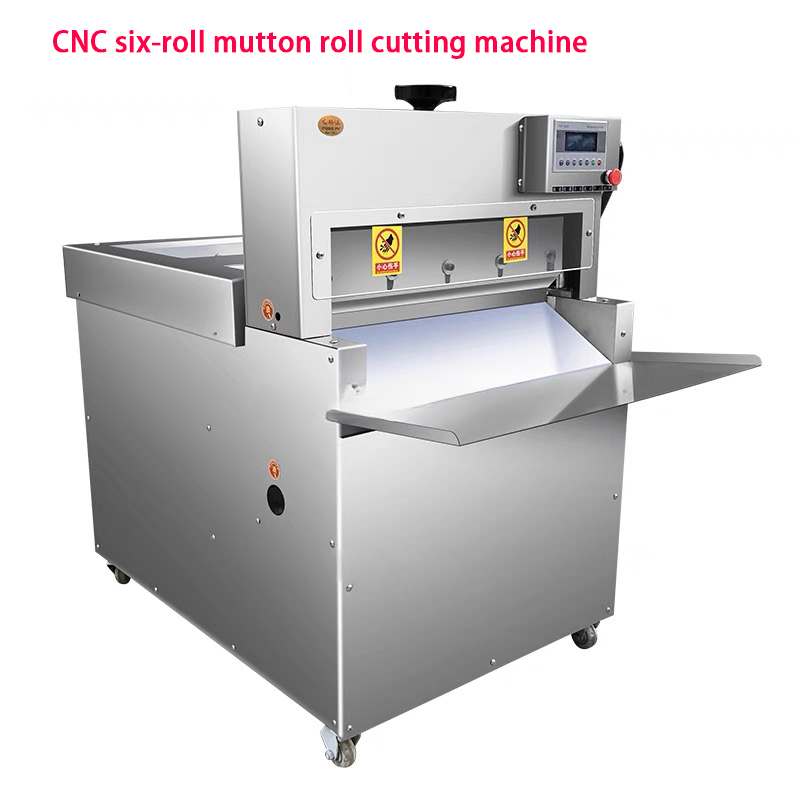

Slice thickness from 0.1 mm up to 8 mm (1 roll), 20 mm (2 rolls), 50 mm (4 and 6 rolls) or 100 mm (8 rolls), so paper-thin hotpot rolls and thicker portions come off the same line.
Food-grade thickened stainless steel body with a pure-copper motor and high-hardness alloy blade for long service life.

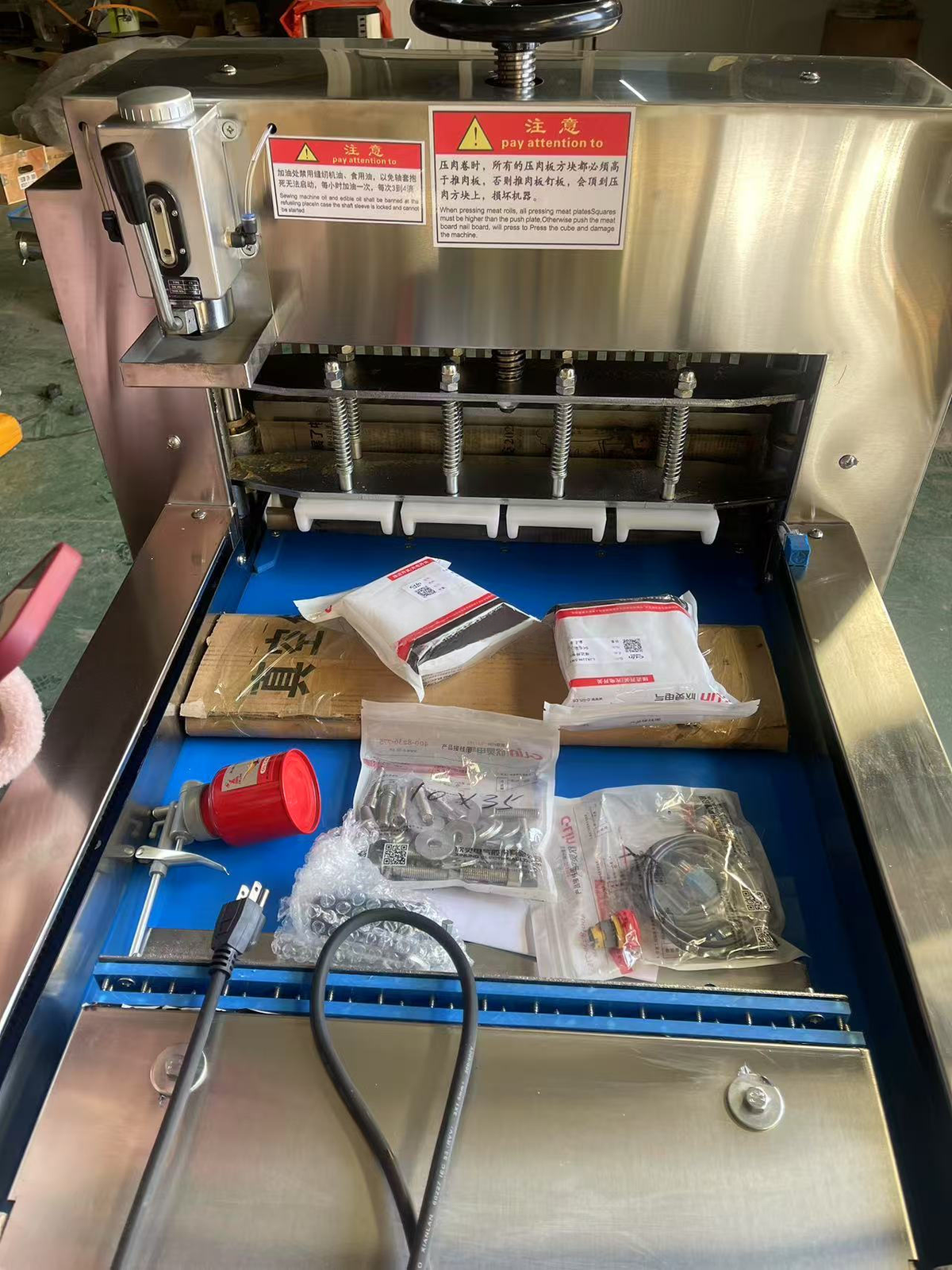

PVC food-grade pressing plate and single-hand press wheel keep every block held firm and hygienic.
Automatic oil pump for precise lubrication, plus a safety door that cuts power when opened.

Continuous roll changes without stopping suit irregular frozen blocks and keep a busy line moving. Backed by a 1-year manufacturer warranty.

Specifications

Width	1 roll	2 rolls	4 rolls	6 rolls	8 rolls
Dimensions (L × W × H)	400 × 1100 × 930 mm	550 × 1450 × 1400 mm	700 × 1500 × 1400 mm	850 × 1600 × 1400 mm	1150 × 1700 × 1400 mm
Power	1500 W	3000 W	3000 W	3000 W	4000 W
Voltage	110V/220V	110V/220V	110V/220V	110V/220V	110V/220V
Weight	110.0 kg	200.0 kg	300.0 kg	400.0 kg	600.0 kg
Material	Food-grade stainless steel, Alloy steel blade, Food-grade PVC pressing plate	Food-grade stainless steel, Alloy steel blade, Food-grade PVC pressing plate	Food-grade stainless steel, Alloy steel blade, Food-grade PVC pressing plate	Food-grade stainless steel, Alloy steel blade, Food-grade PVC pressing plate	Food-grade stainless steel, Alloy steel blade, Food-grade PVC pressing plate
Warranty	1 Year	1 Year	1 Year	1 Year	1 Year
Certifications	2006/42/EC	2006/42/EC	2006/42/EC	2006/42/EC	2006/42/EC
Customization	Available in 1, 2, 4, 6 and 8 cutting-roll models	Available in 1, 2, 4, 6 and 8 cutting-roll models	Available in 1, 2, 4, 6 and 8 cutting-roll models	Available in 1, 2, 4, 6 and 8 cutting-roll models	Available in 1, 2, 4, 6 and 8 cutting-roll models
Automation grade	Fully automatic	Fully automatic	Fully automatic	Fully automatic	Fully automatic
Core component	Pure-copper motor	Pure-copper motor	Pure-copper motor	Pure-copper motor	Pure-copper motor
Max cutting height	180 mm	180 mm	180 mm	180 mm	180 mm
Motor lubrication	Automatic oil pump	Automatic oil pump	Automatic oil pump	Automatic oil pump	Automatic oil pump
Frozen cutting	Slices down to -18°C without thawing	Slices down to -18°C without thawing	Slices down to -18°C without thawing	Slices down to -18°C without thawing	Slices down to -18°C without thawing
production capacity	50–480 pcs/min (by model)	50–480 pcs/min (by model)	50–480 pcs/min (by model)	50–480 pcs/min (by model)	50–480 pcs/min (by model)
Slice thickness	0.1–8 mm	0.1–20 mm	0.1–50 mm	0.1–50 mm	0.1–100 mm
Capacity	50 kg/h	100 kg/h	200 kg/h	300 kg/h	400 kg/h
Slice speed	50–60 pcs/min	100–120 pcs/min	200–240 pcs/min	300–360 pcs/min	400–480 pcs/min
Max cutting width	160 mm	260 mm	500 mm	700 mm	900 mm
Max cutting length	420 mm	600 mm	600 mm	600 mm	600 mm

Frequently asked questions

Can it slice blocks straight from the freezer, or does the meat need tempering first?

Blocks go in at -18°C with no thawing step. The high-hardness alloy blade and PVC pressing plate hold the block firm so slices come off whole instead of shattering at the edges.

How do I choose between the 1, 2, 4, 6 and 8 roll models?

Size it by throughput: 1 roll runs about 50 kg/h, 2 rolls 100, 4 rolls 200, 6 rolls 300 and 8 rolls up to 400 kg/h. Larger roll counts also take wider blocks, so match the model to your daily portioning volume.

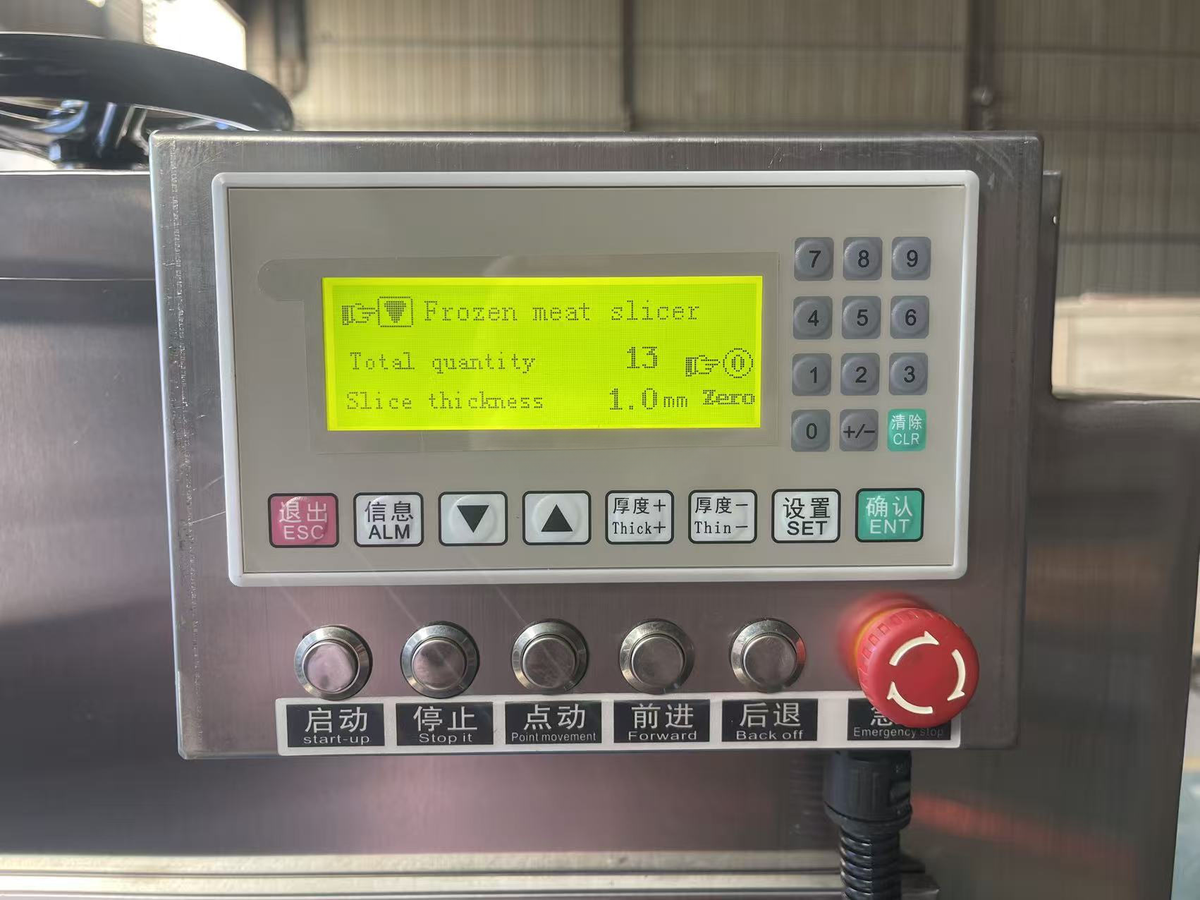

How fine can the slices go, and how is thickness set?

Every model slices from 0.1 mm; the top end depends on the roll count — 8 mm on the 1-roll, 20 mm on the 2-roll, 50 mm on the 4- and 6-roll and 100 mm on the 8-roll. Thickness is dialled in on the CNC panel, and slice speed runs from 50–60 pcs/min on the 1-roll to 400–480 pcs/min on the 8-roll.

What floor space and ceiling height should I allow?

Footprints range from 1100 x 400 mm and 930 mm tall for the 1 roll model up to 1700 x 1150 mm and 1400 mm tall for the 8 roll. Max cutting height is 180 mm, which caps the block size you can load.

What do I need to specify when ordering?

State roll count and voltage — 110 V or 220 V — on the order; power runs from 1.5 kW on the 1-roll to 3 kW on the 2-, 4- and 6-roll and 4 kW on the 8-roll. Warranty is 1 year from the manufacturer, and the machine is built to 2006/42/EC.

What keeps an operator safe on a continuous line?

Opening the protection door cuts power to the machine. The cycle also ends itself, stopping and retracting the push board once a block is through, and an automatic oil pump lubricates the drive across long shifts.
